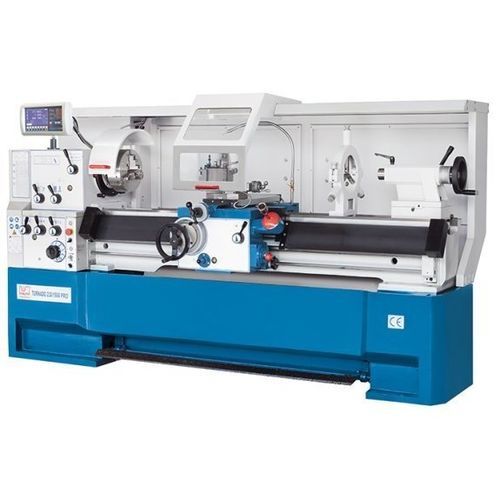

Conventional lathe Turnado 280/1500 PRO

horizontal2-axisD1-8

Product description
The Turnado PRO series are modern universal engine lathes designed for high-performance conventional turning. PRO models combine a wide inverter-controlled speed range, constant cutting-speed function and fast traverses for efficient, high-quality surface finishes while keeping simple operation and serviceability.

Highlights

• Infinitely variable spindle speed (inverter-controlled)
• Apron with rapid-feed motor
• Constant cutting-speed (V‑constant) for face turning
• Extensive standard equipment and ergonomic cladding

Product details

• Rigid, heavily ribbed cast-iron bed and massive one-piece base for stability
• Removable gap bridge to machine short workpieces with large diameters
• Back-gearing and advanced electronic control for high torque and wide speed range
• High-precision pre-loaded spindle bearings for superior concentricity and load capacity
• All guides adjustable; gears, transmission shafts and guideways hardened and ground
• Apron runs in an oil bath for low maintenance; central lubrication simplifies servicing
• Micrometer bed stop for high repeatability on the Z-axis; tailstock adjustable laterally for taper turning
• X.Pos position indicator with digital speed readout and programmable auxiliary functions
• Constant cutting speed: spindle speed automatically adapts to changing diameter during face turning for turning results comparable to CNC

Working area
Center width: 1.500 mm
Center height: 280 mm
Turning Ø over bed: 560 mm
Turning Ø over gap bridge: 785 mm
Turning Ø over support: 355 mm
Gap bridge length: 170 mm
Bed width: 350 mm

Travels
Travel X-axis: 316 mm
Travel Z1-axis: 130 mm
Swing range of top slide: ± 52°

Headstock
Speed range, low: 25 1/min - 200 1/min
Speed range, high: 200 1/min - 1.600 1/min
Spindle bore: 80 mm
Spindle mount: Camlock D1-8
Spindle taper: 7 MT

Feed
Feed X-axis: 0,02 mm/R - 0,573 mm/R
Feed Z-axis: 0,059 mm/R - 1,646 mm/R

Threading
Threading, metric: 0,2 mm - 14 mm
Threading, diametral: (50) 4-112 DP
Threading, module: 0,1 mm - 7 mm
Threading, Whitworth: (60) 2-112 TPI

Tailstock
Tailstock quill diameter: 75 mm
Tailstock taper: MK 5
Tailstock quill stroke: 180 mm
Tailstock traverse adjustment: ± 12 mm

Drive capacity
Motor rating main drive: 7,5 kW

Measures and weights
Overall dimensions (L x W x H): 2,84 m x 1,15 m x 1,46 m
Weight: 2.370 kg

Technical specifications

• Model: Turnado 280/1500 PRO
• Category: Engine lathe / universal lathe
• Center width: 1.500 mm
• Center height: 280 mm
• Turning diameter over bed: 560 mm
• Turning diameter over gap bridge: 785 mm
• Spindle bore: 80 mm (Camlock D1-8, MT7)
• Speed range: 25 - 1.600 1/min (two ranges)
• Main motor rating: 7,5 kW
• Travel X-axis / Z1-axis: 316 mm / 130 mm
• Weight: 2.370 kg
