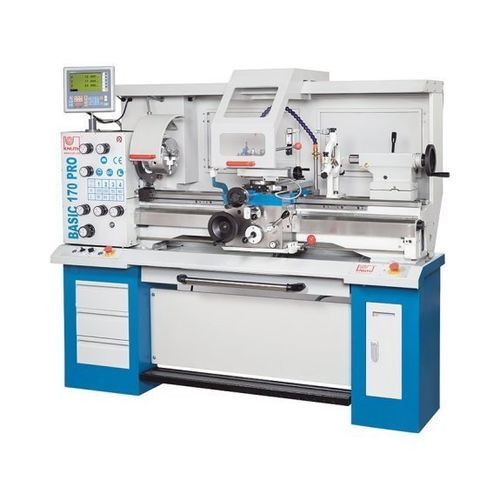

Manual lathe Basic 170 Super PRO

horizontal2-axisflatbed

Description

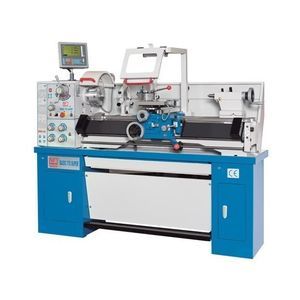

The Basic 170 Super PRO is a fully equipped mechanic's bench lathe designed for repair, training and small-series production. The PRO variant improves ergonomics, standard equipment and performance while keeping maintenance requirements low.

Highlights

• Modern ergonomic layout for workshop use
• Large 52 mm spindle bore for through-stock operations
• Machine base with integrated storage and removable chip tray
• Extensive standard equipment including coolant system
• Hardened and ground guideways and gears for long-term accuracy

Product details

• Robust cast-iron bed provides high stability and vibration damping for accurate turning
• All gears, shafts and guideways are hardened and precision-ground to ensure quiet operation and long tool life
• Wide guideways reduce wear and allow long-term readjustment of accuracy
• Adjustable spindle bearings offer high precision and low wear over time
• Gears and apron operate in a closed oil bath for reduced maintenance
• Safety interlock prevents simultaneous operation of lead screw and feed shaft
• Stainless steel covers protect lead screw and feed shaft from contamination and premature wear
• Tailstock is easy to position and can be offset laterally for taper turning
• High-performance coolant system supplied as standard
• X.Pos position indicator provides programmable auxiliary functions

Technical specifications

• Model: Basic 170 Super PRO
• Working area: center distance 1,000 mm; center height 179 mm; turning Ø over bed 354 mm; turning Ø over carriage 223 mm; bed width 187 mm
• Travels: X = 185 mm; Z1 = 95 mm
• Headstock: spindle speed 70–2,000 1/min; spindle bore 52 mm; spindle mount Camlock D1-5; spindle taper 6 MT
• Feed: X 0.0291–2.035 mm/rev; Z 0.0406–2.842 mm/rev
• Threading: metric 0.2–14 mm; Whitworth 2–56 TPI; diametral 8–56 DP; module 0.2–3.5 MP
• Tailstock: quill Ø 42 mm; taper 3 MT; quill stroke 100 mm
• Drive: main motor 1.5 kW
• Dimensions & weight: 1.9 m x 0.76 m x 1.6 m; weight 650 kg
