Conventional lathe VDM 1600 S
vertical3-axisbackgear

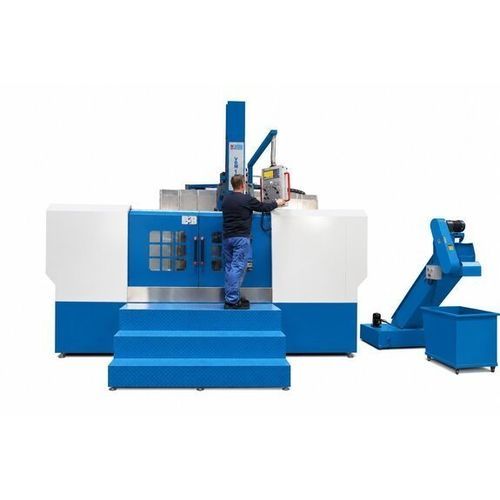

Conventional lathe - VDM 1600 S - Knuth Machine Tools - vertical / 3-axis / backgear
Conventional lathe - VDM 1600 S - Knuth Machine Tools - vertical / 3-axis / backgear
Conventional lathe - VDM 1600 S - Knuth Machine Tools - vertical / 3-axis / backgear - image - 2
Add to favorites
Compare this product
Go to the Knuth Machine Tools website for more information

Characteristics

Control type
conventional
Spindle orientation
vertical
Number of axes
3-axis
Drive system
servo-driven, backgear
Applications
for heavy-duty machining, for large parts, for large workpieces, for large-diameter parts
Other characteristics
with position indicator
Diameter

1,400 mm, 1,600 mm
(55.12 in, 62.99 in)

Spindle speed

Max.: 160 rpm
(1,005.31 rad.min-1)

Min.: 5 rpm
(31.416 rad.min-1)

Axe X

915 mm
(36 in)

Axe Z

800 mm
(31 in)

Nominal power

30 kW
(40.8 hp)

Maximum torque

25,000 Nm
(18,439 ft.lb)

Overall lenght

6,500 mm
(256 in)

Overall width

4,200 mm
(165 in)

Overall height

5,000 mm
(197 in)

Weight

12,500 kg
(27,558 lb)

Description

Overview
The VDM 1600 S is a conventional vertical lathe designed for machining large-diameter, heavy workpieces with easy loading and unloading. The machine features a high-torque servo feed, hydraulic clamping of the crossbeam and a powerful main drive for heavy cutting. A side support with independent feed is available for outer contour machining. A standard 3-axis position indicator ensures positioning accuracy.

Highlights
  • Easy handling and access for crane and forklift
  • Infinitely variable servo feed control for precise material removal
  • Long, rigid vertical boom with hardened guides
  • Side support with independent feed for outer contour work
  • Reduction-gear main drive delivering high spindle torque


Working area
Rotating diameter (max.): 1.600 mm
Turning diameter — upper tool holder: 1.600 mm
Turning diameter — side tool holder: 1.400 mm
Machining height (max.): 1.000 mm
Swivel range upper tool holder: ± 30°
Workpiece length (max.): 1.000 mm
Workpiece weight (max.): 5.000 kg

Travels
Travel X1 axis, upper support: 915 mm
Travel Z1 axis, upper support: 800 mm
Travel W-axis, traverse: 650 mm
Travel X2 axis, side support: 630 mm
Travel Z2 axis, side support: 900 mm

Headstock
Speed range: 5 1/min - 160 1/min
Spindle torque (max.): 25.000 Nm
Rotary table diameter: 1.400 mm

Rapid feed
Rapid feed upper support: 1.800 mm/min
Rapid feed side support: 1.800 mm/min

Feed
Feed speed X-axis: 0,8 mm/min - 86 mm/min
Feed speed Z-axis: 0,8 mm/min - 86 mm/min
Feed speed W-axis: 440 mm/min

Tooling
Tool holder: 30 mm x 40 mm
Tool weight (max.): 50 kg

Drive capacity
Main drive motor rating: 30 kW
Motor rating X-axis: 4,7 kW
Motor rating Z-axis: 4,7 kW

Measures and weights
Overall dimensions (L x W x H): 6,5 m x 4,2 m x 5 m
Weight: 12.500 kg

Technical specifications
  • Model: VDM 1600 S
  • Max. rotating diameter: 1.600 mm
  • Max. machining height: 1.000 mm
  • Max. workpiece weight: 5.000 kg
  • Max. spindle torque: 25.000 Nm
  • Main motor: 30 kW
  • Servo feed control (infinitely variable)
  • Hydraulic clamping of crossbeam
  • Side support with independent feed (X2/Z2)
  • Travel ranges (X1/Z1/W/X2/Z2): 915 / 800 / 650 / 630 / 900 mm
  • Rapid feed upper/side support: 1.800 mm/min
