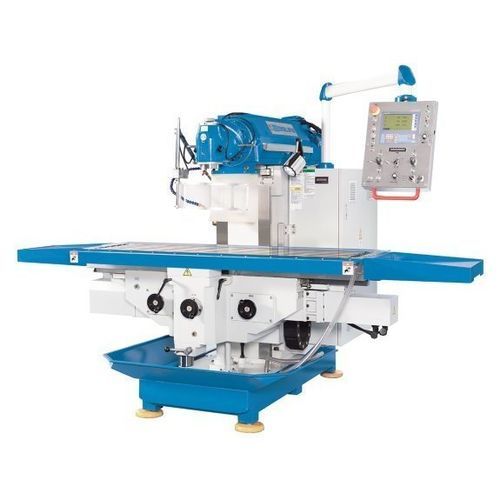

3-axis milling machine Servomill® UWF 1400

universalservo-drivenindustrial

Product overview
The Servomill® UWF 1400 is a universal milling machine with servo-conventional feed technology and a two-axis swiveling universal milling head. It offers an extra-large work area and high main spindle power, delivering CNC-like production functions without full programming. Typical applications: toolmaking, general manufacturing and training.

Highlights

• Large working area with high table load capacity
• Servo-conventional feed for precise manual and semi-automatic machining
• Preloaded ball screws on all axes for backlash-free positioning
• Electronic handwheels and electronic stops
• Universal cutter head with 2 swivel axes (360°)
• Infinitely variable spindle speed and two speed ranges

Technical specs — Working area
Table dimensions: 2.000 mm x 500 mm
Table load capacity: 1.800 kg
Number of T-slots: 5 positions
T-slot width: 18 mm
T-slot spacing: 80 mm

Technical specs — Travels
Travel X-axis: 1.400 mm
Travel Y-axis: 700 mm
Travel Z-axis: 500 mm

Technical specs — Milling head
Speed range (2): 30-390 / 390-2050 1/min
Spindle mount: SK 50 (DIN 2080)
Swivel angle: 360°
Spindle centre-to-table distance: 50 mm - 550 mm

Technical specs — Rapid feed
Rapid feed X-axis: 2.200 mm/min
Rapid feed Y-axis: 2.200 mm/min
Rapid feed Z-axis: 1.100 mm/min

Technical specs — Feed
Feed speed X-axis: 10 mm/min - 1.000 mm/min
Feed speed Y-axis: 10 mm/min - 1.000 mm/min
Feed speed Z-axis: 5 mm/min - 500 mm/min

Technical specs — Drive capacity
Main spindle motor: 11 kW
Feed motor X axis: 3,6 kW
Feed motor Y axis: 3,6 kW
Feed motor Z axis: 5,5 kW
Coolant pump motor: 0,13 kW

Technical specs — Measures and weights
Overall dimensions (L x W x H): 3,25 m x 2,5 m x 2,2 m
Weight: 4.500 kg

Product details & features

• Integrated electronics simplify conventional milling and increase precision
• Rigid knee-and-column frame with additional console support for high table load
• Large-dimension dovetail guide on X-axis for excellent damping and precise adjustment
• Box ways with wide support bases; all guides hardened, ground and centrally lubricated
• Drive integrated in heavy top beam for efficient power transmission and low vibration
• Universal cutter head enables positioning at virtually any spatial angle
• Two-step hardened and ground gears provide a wide, quiet and load-capable speed range
• Powerful servo motors for stepless feed and rapid feed on all axes
• Extensive standard accessories: coolant system, LED work lamps and operating tools

Electronics & operation

• Electronics developed and built in Germany
• Positioning control for traveling pre-selected paths on all axes
• Zero-backlash preloaded ball screws
• Servo motors on all axes with stepless feed, rapid feed and speed control
• Electronic spindle load indicator and electronic handwheels on all axes
• X/Y/Z manual feed via joystick technology and integrated position indicator
• Feed can be synchronized with spindle speed for machining cycles
• Premium drive components designed for continuous operation and low maintenance

Technical specifications — Summary

• Model: Servomill® UWF 1400
• Type: Universal servo-conventional milling machine with 2-axis universal head
• Working area: table 2.000 x 500 mm, load 1.800 kg
• Travels: X 1.400 mm / Y 700 mm / Z 500 mm
• Spindle: SK 50, speeds 30-390 / 390-2050 1/min
• Main motor: 11 kW; Feed motors X/Y/Z: 3,6 / 3,6 / 5,5 kW
• Rapid feed X/Y: 2.200 mm/min, Z: 1.100 mm/min
• Dimensions (L x W x H): 3,25 m x 2,5 m x 2,2 m; Weight: 4.500 kg
