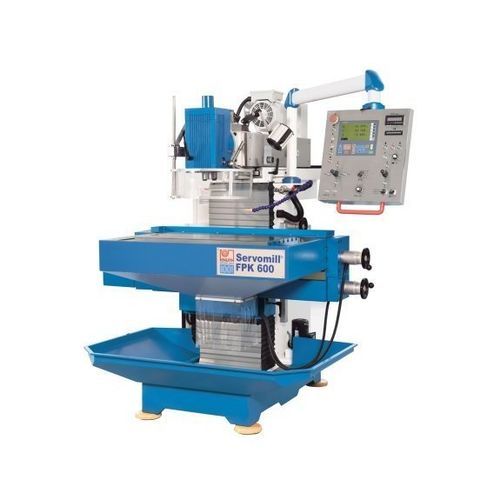

3-axis CNC milling machine Servomill® FPK 600

verticalfor molds

Short description
This versatile tool and milling machine is intended for toolmaking, production and training. Its compact console design provides flexibility and straightforward operation. Equipped with electronic stops, electronic handwheels and additional milling functions, the Servomill® makes many advantages of CNC production technology accessible without programming.

Highlights

• Servo feed with electronic handwheels
• Preloaded ball screws on all axes
• 3‑position electronic stops per axis
• Large vertical console and worktable with 7 T-slots
• Vertical and horizontal spindle (SK40)
• Infinitely variable spindle speed

Design and construction
The console-style machine bed is cast iron for precision and durability. Controls are grouped for ergonomic operator access. Robust box guides ensure dimensional stability and high load capacity.

Main spindle and drives
The spindle gearbox is integrated in the upper beam for efficient, low-vibration power transmission. Hardened two-stage gears provide a wide, continuously variable speed range. The vertical milling head swivels both sides and is removable to access the horizontal spindle; a tailstock can be fitted for long-arbor machining.

Feed
Powerful servomotors enable infinitely variable work feeds and rapid traverses on all axes. Preloaded ball screws ensure backlash-free precise positioning and reduced wear.

Equipment
Standard equipment includes a powerful coolant system, LED working lights, a tooling package with long arbors and collets, and optional central lubrication.

Servomill - Highlights (electronics & control)

• Electronics developed and manufactured in Germany
• Positioning control for preset paths on all axes
• Zero‑backlash preloaded ball screws
• Servo motors on all axes, variable feed and rapid feed
• Electronic spindle load indicator
• Electronic handwheels and joystick axis control
• Integrated position indicator with glass scale (X.Pos 3.2)
• Feed can be synchronized with spindle speed

Additional features

• Position indicator X.pos 3.2 (new generation)
• Intuitive operation and ergonomic control layout
• Set limit stops on any axis with one button (3 positions per axis)
• Maintenance‑free feed drives

Technical specifications

• Model: Servomill® FPK 600
• Table: 850 × 450 mm; Vertical table: 1.190 × 250 mm; Table load max.: 300 kg; T-slots table: 7 (14 × 63 mm); Vertical table T-slots: 3 (14 × 63 mm)
• Travels (X / Y / Z): 600 / 450 / 450 mm
• Spindle speed: 40 – 2,000 1/min; Spindle mount: SK 40 (DIN 2080); Swivel angle: 90°; Quill travel: 60 mm; Spindle nose‑to‑table: 50 – 500 mm; Spindle centre‑to‑column: 170 – 620 mm
• Rapid feed X / Y / Z: 1,200 mm/min
• Work feed X / Y / Z: 10 – 1,000 mm/min
• Drive power: Main drive 5.5 kW; Coolant pump 0.13 kW; Feed torque X / Y / Z: 10 / 10 / 15 Nm
• Overall dimensions (L × W × H): 1.6 m × 1.8 m × 2 m; Weight: 1,750 kg
