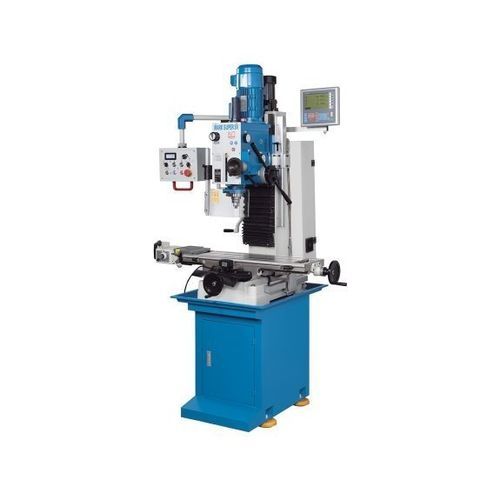

Vertical drilling and milling machine Mark Super SV

3-axisfor steelvariable speed

Description
The Mark Super SV is a compact drill‑milling machine designed for workshop and maintenance environments, small‑series production and training. It combines a powerful drive, versatile milling head and a wide speed range to handle drilling and milling of steel and non‑ferrous metals while occupying minimal floor space.

Highlights

• Infinitely variable feed on X axis
• Automated drilling feed with digital depth display
• Gearbox milling head for high‑torque machining
• Swiveling head (±45°) for versatile applications
• Infinitely variable spindle speed with digital display (SV model)

Product details

• Motorised vertical movement of the milling head with hand‑wheel for precise positioning
• Hand‑wheel for quill micro‑feed
• Digital depth indicator for quill travel
• Tapping unit with adjustable reverse rotation for thread cutting
• Hardened gear racks and shafts for quiet operation and long life
• Rigid base with integrated storage (included)
• Two gear steps plus premium frequency control for high torque across the speed range

3‑axis position indicator — advantages

• Improved positioning accuracy and reduced error rate
• Higher process reliability and productivity gains
• Easy‑to‑read display with operator‑focused functions
• Resolution: 0.01 / 0.005 mm; default coordinates; memory for 10 tools
• Hole‑circle calculation, calculator function, radius/diameter toggle, mm/inch conversion

Technical specs
Working area
Table dimensions: 800 mm x 240 mm
Drilling capacity in steel: 25 mm
Shaft milling capacity: 25 mm
Head elevation: 380 mm
Number of table T‑slots: 3 (14 mm x 80 mm)

Travels
Travel X‑axis manual / automatic: 560 / 480 mm
Travel Y‑axis: 190 mm

Vertical milling head
Spindle mount: MK 4 DIN 228
Quill diameter: 75 mm
Quill stroke: 120 mm
Spindle nose‑to‑table distance: 450 mm
Throat: 258 mm
Head swivel range: ±45°
Speed: (2) 75–438 / 438–2500 1/min

Feed
Quill feeds: 0.10; 0.18; 0.26 mm/rev (3)

Drive capacity
Main motor rating: 1.5 kW

Measures and weights
Overall dimensions (L x W x H): 1.24 m x 0.93 m x 2.10 m
Weight: 380 kg

Standard equipment / Included

• 3‑axis position indicator X.Pos 3.2 (new generation with turning functions)
• Automatic quill feed
• Base with storage
• Table feed TV 1000
• Drill chuck 13 mm
• Tool‑holder bit
• Operator manual

Notes
Infinitely variable spindle speed with digital display applies to SV model only. Tapping unit features adjustable rotation reversal for thread cutting. Combination of gearbox and frequency control ensures high torque across the speed range.

Technical characteristics

• Model: Mark Super SV
• Brand: KNUTH
• Table dimensions: 800 x 240 mm
• Drilling capacity (steel): 25 mm
• Quill stroke: 120 mm
• Main motor: 1.5 kW
• Overall dimensions: 1.24 m x 0.93 m x 2.10 m
• Weight: 380 kg
