3-axis CNC machining center X.mill 800
verticalSK4024 tools

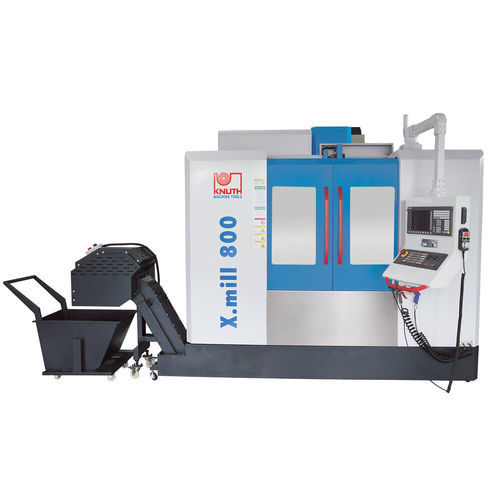

3-axis CNC machining center - X.mill 800 - Knuth Machine Tools - vertical / SK40 / 24 tools
3-axis CNC machining center - X.mill 800 - Knuth Machine Tools - vertical / SK40 / 24 tools
3-axis CNC machining center - X.mill 800 - Knuth Machine Tools - vertical / SK40 / 24 tools - image - 2
3-axis CNC machining center - X.mill 800 - Knuth Machine Tools - vertical / SK40 / 24 tools - image - 3
3-axis CNC machining center - X.mill 800 - Knuth Machine Tools - vertical / SK40 / 24 tools - image - 4
3-axis CNC machining center - X.mill 800 - Knuth Machine Tools - vertical / SK40 / 24 tools - image - 5
3-axis CNC machining center - X.mill 800 - Knuth Machine Tools - vertical / SK40 / 24 tools - image - 6
Add to favorites
Compare this product
Go to the Knuth Machine Tools website for more information

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
SK40
Number of tool stations
24 tools
X travel

800 mm
(31.5 in)

Y travel

550 mm
(21.65 in)

Z travel

550 mm
(21.65 in)

Work feed X-axis

10,000 mm/min
(6.56 in/s)

Work feed Y-axis

10,000 mm/min
(6.56 in/s)

Work feed Z-axis

10,000 mm/min
(6.56 in/s)

Table load capacity

500 kg
(1,102 lb)

Positioning accuracy

0.004 mm
(0.00016 in)

Repeatability

0.002 mm
(0.00008 in)

Weight

5,200 kg
(11,464.04 lb)

Overall length

3,700 mm
(145.7 in)

Overall width

2,250 mm
(88.6 in)

Overall height

2,250 mm
(88.6 in)

Description

The X.mill series is the latest generation of our vertical machining centres with modern, powerful CNC control from Siemens. Vertical machining centres such as this series offer outstanding value for money. A wide range of accessories allows you to adapt them to your specific requirements. Fast tool change with double-arm gripper Siemens 828 control system High-quality components and complete equipment Designed for multi-shift operation
