3-axis CNC milling machine Portalo C 2014 CNC

verticalwith moving tablegantry

Overview

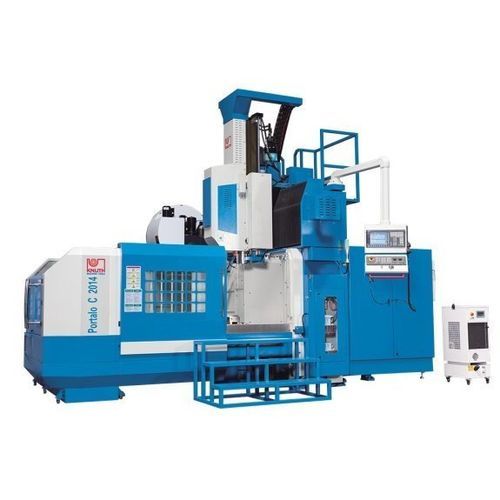

The Portalo C 2014 CNC is a CNC gantry milling machine designed for precision machining of large and heavy workpieces. The machine features a fixed gantry and a movable table, making it suitable for heavy-duty and high-speed machining of complex dies and forms. A broad range of standard equipment enables adaptation to specific production requirements.

Highlights

• High workpiece weight capacity (table load up to 4,000 kg)
• Large working area (table 2,000 x 1,200 mm)
• Rigid fixed gantry design for sustained stiffness
• 24-position quick-action tool changer with dual-arm gripper
• Renishaw tool and workpiece measuring systems

Product Details
The movable set-up table combined with a fixed gantry enables machining of large and heavy workpieces while keeping setup accessible and efficient.

Gantry

• Extra-rigid gantry and guide solutions ensure stability across long travel distances
• Combination of linear guides and box ways provides extended service life and higher machining speeds
• Preloaded ball screws and proven servo motors deliver dynamic feeds and rapid traverse on all axes

Main spindle

• High drive power and wide speed range supply required torque reserves for heavy-duty cutting (spindle speed up to 6,000 1/min, SK 50)

Tool Changer

• Robust 24-station tool magazine with dual-arm gripper for quick tool changes and flexible production

Control

• Siemens 828D control provides intuitive programming and industry support
• Siemens Shopmill software included to simplify production of complex contours and workpieces

Equipment

• Large sliding doors on the machine enclosure for easy access and tooling
• Renishaw measuring systems for tool and workpiece gauging to reduce downtime and scrap
• Powerful coolant system with chip conveyor for efficient chip disposal
• Automatic central lubrication system to simplify maintenance

Technical Specs
Working area
Table dimensions: 2.000 mm x 1.200 mm
Table load capacity (max.): 4.000 kg
Spindle nose-to-table distance: 150 mm - 950 mm
Column distance: 1.400 mm

Travels
Travel X-axis: 2.100 mm
Travel Y-axis: 1.400 mm
Travel Z-axis: 800 mm

Headstock
Spindle speed: 6.000 1/min
Spindle mount: SK 50 ISO 7388-1 (DIN 69871)
Spindle diameter: 190 mm

Rapid feed
X-axis rapid feed: 12 m/min
Y-axis rapid feed: 12 m/min
Z-axis rapid feed: 10 m/min

Feed
Work feed: 8.000 mm/min

Tooling
Number of tool stations: 24 positions

Accuracies
Positioning accuracy: 0,005/300 mm
Repeatability: 0,005/1000 mm

Drive capacity
Motor rating main drive: 26 kW
Main drive, continuous load: 22 kW

Measures and weights
Overall dimensions (L x W x H): 6,3 m x 4,15 m x 4,45 m
Weight: 16.000 kg
