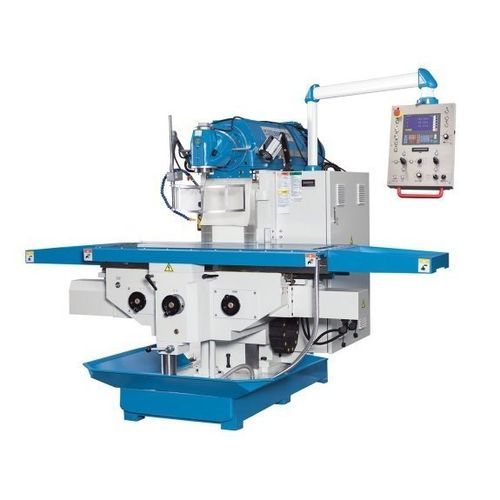

2-axis CNC milling machine Servomill® UWF 1200

universaltilting-head

Overview
The Servomill® UWF 1200 is a universal milling machine with servo‑conventional feed technology and a two‑axis swiveling universal cutter head. It features an extra‑large work area and powerful main spindle drives. Electronic stops, electronic handwheels and extended milling functions provide many production advantages of CNC technology without programming. Typical applications include toolmaking, production and technical training.

Highlights

• Large work area
• Servo‑conventional feed technology
• Preloaded ball screws on all axes
• Electronic handwheels
• Universal cutter head with 2 swivel axes
• Infinitely variable spindle speed

Detailed features

• Integrated electronics for easier, more precise and efficient conventional milling
• New generation of conventional milling machines combining manual operation and electronic aids
• User‑oriented design with improved precision and productivity
• High reliability and long component service life to reduce maintenance and increase availability
• Sturdy, torsionally rigid knee‑and‑column machine frame
• Large clamping area and long travels for an extensive work area within compact overall dimensions
• Console supported by an additional guide system to increase table load capacity
• X‑axis movement on a large dovetail guide offering excellent damping and high‑precision adjustability
• Box ways with wide support bases for increased load capacity and dimensional stability
• All guides hardened and ground, lubricated via a central lubrication system
• Complete drive integrated in the heavy top beam for efficient power transmission and low vibration
• Universal cutter head swivels on two axes; spindle can be positioned at virtually any spatial angle and quickly set to horizontal
• Robust 2‑step gears, hardened and ground, providing a wide speed range and quiet operation
• Powerful servo motors enabling infinitely variable feed speeds and rapid feeds on all axes
• Preloaded ball screws ensure precise, backlash‑free positioning with minimal wear
• Standard equipment includes coolant system, LED work lamps and an extensive set of operating tools

Operational advantages

• Electronics developed and manufactured in Germany
• Positioning control for traveling pre‑selected paths on all axes
• Zero‑backlash preloaded ball screws
• Servomotors on all axes with infinitely variable feed, rapid feed and speed control
• Electronic spindle load indicator to assist efficient utilization and protect against overloads
• Electronic handwheels on all axes and joystick control for comfortable axis movement
• Integrated position indicator with precision glass scale
• Feed can be synchronized with spindle speed if required
• Premium drive components designed for continuous operation; maintenance‑free feed drive

Technical specifications

• Working area
  Table dimensions: 1.600 mm x 500 mm
  Table load capacity: 1.800 kg
  Number of T‑slots: 5 positions
  T‑slot width: 18 mm
  T‑slot spacing: 80 mm
• Travels
  Travel X‑axis: 1.200 mm
  Travel Y‑axis: 700 mm
  Travel Z‑axis: 500 mm
• Milling head
  Speed range (2): 30‑390 / 390‑2050 1/min
  Spindle mount: SK 50 DIN 2080
  Swivel angle: 360°
  Spindle center‑to‑table distance: 50 mm ‑ 550 mm
• Rapid feed
  Rapid feed X‑axis: 2.200 mm/min
  Rapid feed Y‑axis: 2.200 mm/min
  Rapid feed Z‑axis: 1.100 mm/min
• Feed
  Feed speed X‑axis: 10 mm/min ‑ 1.000 mm/min
  Feed speed Y‑axis: 10 mm/min ‑ 1.000 mm/min
  Feed speed Z‑axis: 5 mm/min ‑ 500 mm/min
• Drive capacity
  Motor rating main drive: 11 kW
  Motor rating X axis feed: 3,6 kW
  Motor rating Y axis feed: 3,6 kW
  Motor rating Z axis feed: 5,5 kW
  Motor rating coolant pump: 0,13 kW
• Measures and weights
  Overall dimensions (L x W x H): 2,85 m x 2,5 m x 2,2 m
  Weight: 4.200 kg
