3-axis CNC machining center VECTOR 650 M Si
verticalcolumn type24 tools

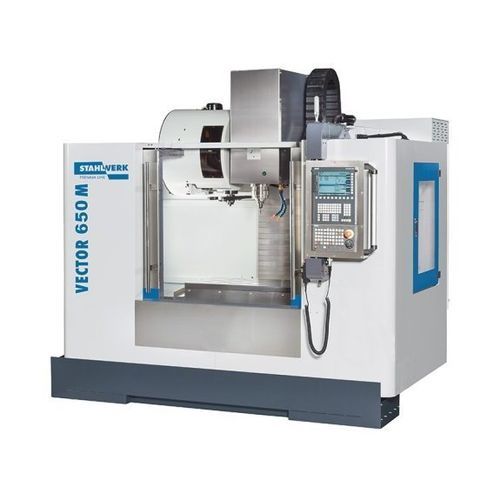

3-axis CNC machining center - VECTOR 650 M Si - Knuth Machine Tools - vertical / column type / 24 tools
3-axis CNC machining center - VECTOR 650 M Si - Knuth Machine Tools - vertical / column type / 24 tools
3-axis CNC machining center - VECTOR 650 M Si - Knuth Machine Tools - vertical / column type / 24 tools - image - 2
3-axis CNC machining center - VECTOR 650 M Si - Knuth Machine Tools - vertical / column type / 24 tools - image - 3
3-axis CNC machining center - VECTOR 650 M Si - Knuth Machine Tools - vertical / column type / 24 tools - image - 4
3-axis CNC machining center - VECTOR 650 M Si - Knuth Machine Tools - vertical / column type / 24 tools - image - 5
3-axis CNC machining center - VECTOR 650 M Si - Knuth Machine Tools - vertical / column type / 24 tools - image - 6
Add to favorites
Compare this product
Go to the Knuth Machine Tools website for more information

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
column type
Number of tool stations
24 tools
Other characteristics
compact, high-precision
X travel

650 mm
(25.59 in)

Y travel

550 mm
(21.65 in)

Z travel

550 mm
(21.65 in)

Rotational speed

10,000 rpm
(62,832 rad.min-1)

Power

9 kW
(12.24 hp)

Work feed X-axis

10,000 mm/min
(6.56 in/s)

Work feed Y-axis

10,000 mm/min
(6.56 in/s)

Work feed Z-axis

10,000 mm/min
(6.56 in/s)

Table load capacity

600 kg
(1,323 lb)

Tool weight (max)

7 kg
(15.4 lb)

Positioning accuracy

0.005 mm
(0.0002 in)

Repeatability

0.003 mm
(0.00012 in)

Tool-changing time

1.8 s

Weight

4,000 kg
(8,818.49 lb)

Overall length

2.4 m
(7'10" )

Overall width

2.2 m
(7'02" )

Overall height

2.7 m
(8'10" )

Description

Overview
The VECTOR 650 M SI is a compact vertical machining centre preconfigured for high-precision and multi-shift production. FEM‑optimized frame design with Meehanite casting and delta-column geometry provides enhanced stiffness and thermal stability. High-quality components and roller guideways support reliable operation in industrial environments.

Highlights
  • Y-shaped Meehanite column for improved rigidity
  • 30-bar through-spindle coolant for optimized chip removal
  • Designed for continuous multi-shift operation
  • Wide options for customization and automation
  • 2-year standard warranty

Working area
Table dimensions: 800 mm x 550 mm
Table load capacity: 600 kg
Spindle nose-to-table distance: 150 mm – 700 mm
Spindle center to column distance: 619 mm

Travels
Travel X-axis: 650 mm
Travel Y-axis: 550 mm
Travel Z-axis: 550 mm
Guideway: Roller

Headstock
Spindle speed: 10,000 1/min
Spindle mount: SK 40 ISO 7388-1 (DIN 69871)
Constant torque: 57 Nm
Spindle bearings: 7012 x 4
Spindle drive: Belt drive (Riemenantrieb)

Rapid feed
Rapid feed X/Y: 36,000 mm/min
Rapid feed Z: 15,000 mm/min

Feed
Working feed: 10,000 mm/min

Tooling
Tool changer type: Dual-arm
Number of tool stations: 24 positions
Tool selection: Memory random
Max tool size Ø x L: 80 mm x 300 mm
Max tool weight: 7 kg
Tool-change time (tool/tool): 1.8 sec
Tool-change time (chip/chip): 3.9 sec

Accuracies
Repeatability: ± 0,003 / ± 0.00012" mm
Positioning accuracy: ± 0,005 / 0.0002" mm

Drive capacity
Main spindle power (continuous): 9 kW
Total power consumption: 20 kVA
Voltage / Frequency: 400 V / 50 Hz

Measures and weights
Overall dimensions (L x W x H): 2.42 m x 2.20 m x 2.70 m
Weight: 4,000 kg

Control & Software
Standard control: Siemens Sinumerik 828D (optionally upgradable). Feature highlights: ShopMill, ProgramGUIDE, SINUMERIK MDynamics with Advanced Surface, 4‑axis simultaneous interpolation, DXF reader, extensive technology cycles, measuring cycles and animated programming aids.

Specifications
  • Model: VECTOR 650 M SI
  • Category: C-frame vertical CNC centre
  • Table: 800 mm x 550 mm, load 600 kg
  • Travels (X / Y / Z): 650 / 550 / 550 mm
  • Spindle: SK40, 10,000 1/min, 57 Nm, belt drive
  • Tool changer: Dual-arm, 24 positions
  • Rapid feed X/Y: 36,000 mm/min; Z: 15,000 mm/min
  • Main spindle power: 9 kW; Total power: 20 kVA
  • Dimensions (L×W×H): 2.42 × 2.20 × 2.70 m; Weight: 4,000 kg
