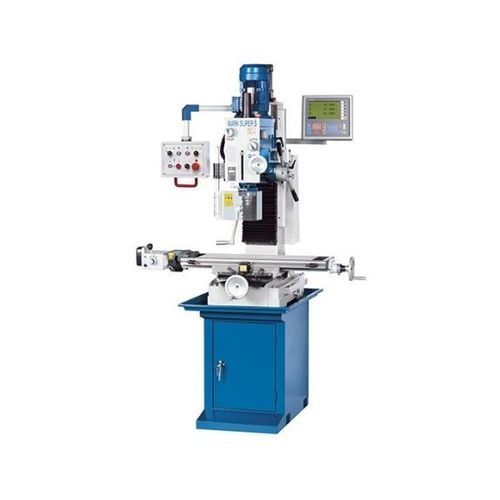

Vertical drilling and milling machine Mark Super S

3-axisfor steelvariable speed

Overview
The Mark Super S is a compact drill‑milling machine designed for drilling and milling steel and non‑ferrous metals. It combines a powerful drive, versatile head adjustment and a broad speed range for single‑piece production, small series and maintenance workshops.

Highlights

• Infinitely variable X‑axis feed for precise longitudinal movement
• Automated drilling feed with digital depth readout
• Gearbox milling head for high‑torque machining
• Swiveling head (±45°) for diverse machining angles
• Stepless spindle speed with digital display (SV model)

Product features

• Motorized vertical movement of the milling head with manual crank for exact positioning
• Handwheel for quill micro‑feed
• Digital depth indicator for quill travel
• Tapping unit with adjustable reversal for thread cutting
• Hardened gear racks and shafts for quiet, durable operation
• Rigid base with integrated storage compartment
• Infinitely variable X‑axis feed included as standard
• Two gearbox steps plus premium frequency control for high torque across the speed range
• Selected spindle speed shown directly on the control panel
• Optional 3‑axis position indicator: resolution 0.01 / 0.005 mm; memory for 10 tools; hole circle calculator; mm/inch conversion
• Easy to expand and low‑maintenance design

Technical specifications

• Working area
  Table dimensions: 800 mm x 240 mm
  Drilling capacity (steel): 32 mm
  Shaft milling: 32 mm
  Head elevation (vertical travel): 350 mm
  Number of T‑slots: 3
  T‑slot table (width x spacing): 14 mm x 80 mm
• Travels
  Travel X‑axis manual / automatic: 560 / 480 mm
  Travel Y‑axis: 190 mm
• Vertical milling head
  Spindle mount: MK 4 (DIN 228)
  Quill diameter: 75 mm
  Quill stroke: 120 mm
  Spindle nose‑to‑table distance: 460 mm
  Throat (overhang): 258 mm
  Head swivel range: ± 45°
  Speed range: (12) 75–3200 1/min
• Feed
  Quill feeds: 0.10; 0.18; 0.26 (3) mm/rev
• Drive capacity
  Main motor rating: 1.5 / 1.1 kW
• Dimensions and weight
  Overall dimensions (L x W x H): 1.25 m x 0.95 m x 2.13 m
  Weight: 380 kg
