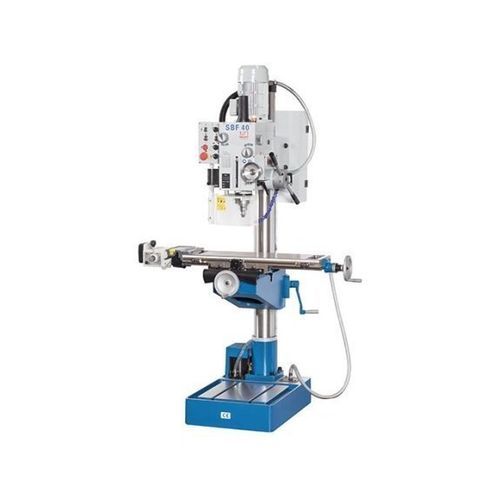

Vertical drilling and milling machine SBF 40 TV 1000

for steelvariable speedcompact

Product overview
The SBF 40 TV 1000 is a combined drilling and milling machine designed for workshop and light production use. It performs high-capacity drilling in steel and allows milling of steel and non-ferrous metals, offering a compact solution with a wide speed range and adjustable feeds.

Highlights

• Infinitely variable X-axis feed for coordinated drilling and light milling
• Automated drilling feed with depth indication
• Gearbox milling head for powerful chip removal
• Swiveling headstock for angled operations up to ±45°

Product details

• Combined drilling and milling functionality for flexible workshop operations
• Large compound sliding table with automatic infinitely variable X-axis feed
• Quiet operation thanks to oil-bath lubricated gearbox for extended component life
• Robust spindle bearings designed for sustained loads
• Manual drill feed convertible to fine feed via handwheel
• Controllable automatic feed with 3 gear steps
• Adjustable height for gearbox head and table
• Table guides adjustable with taper gibs for precise alignment
• Gear head swivels both sides; cutter mounts secured by M16 drawbar
• Tapping capability and integrated coolant system

Technical specs (extract)
Working area
Table set up area: 730 mm x 210 mm
Table load capacity (max.): 100 kg
Number of table T-slots: 3
T-slot table (width x spacing): 14 mm x 63 mm
T-slot foot (qty): 2
T-slot foot (width x spacing): 14 mm x 200 mm
Quill stroke: 120 mm
Throat depth: 278 mm
Column diameter: 115 mm
Spindle nose-to-table surface distance: 600 mm
Spindle nose-to-foot distance: 1,180 mm
Drilling capacity in steel (ST37): 40 mm
Head swivel range: ±45°
Tapping capacity, steel (ST37): M16

Travels
Travel X-axis: 500 mm
Travel Y-axis: 190 mm
Z1 / Z2 axis travel: 530 mm

Headstock
Speed range: 75 1/min - 3,200 1/min
Spindle mount: MK 4 (DIN 228)

Rapid feed
Rapid feed: 600 mm/min

Feed
Work feed: 0 mm/min - 420 mm/min (infinitely variable X-axis feed)

Drive capacity
Main motor rating: 1.5 / 1.1 kW
Coolant pump motor rating: 0.04 kW

Measures and weights
Overall dimensions (L x W x H): 0.83 m x 0.76 m x 1.85 m
Weight: 390 kg

Characteristics / technical specifications

• Model: SBF 40 TV 1000
• Type: Mill drill / Universal milling-drilling machine
• Table area: 730 x 210 mm; 3 T-slots
• Max table load: 100 kg
• Travels (X / Y / Z): 500 mm / 190 mm / 530 mm
• Quill stroke: 120 mm; Throat depth: 278 mm
• Spindle speed range: 75 - 3,200 1/min; Spindle mount: MK4 (DIN 228)
• Drilling capacity (steel ST37): 40 mm; Tapping capacity: M16
• Rapid feed: 600 mm/min; Work feed: 0 - 420 mm/min
• Main motor: 1.5 / 1.1 kW; Coolant pump: 0.04 kW
• Dimensions: 0.83 x 0.76 x 1.85 m; Net weight: 390 kg
