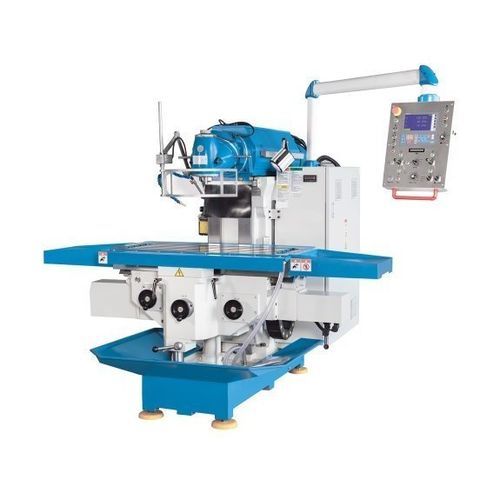

2-axis CNC milling machine Servomill® UWF 900

universalcolumn typeSK40

Product overview
The versatile Servomill UWF with servo-conventional feed technology and a two-level swiveling cutter head is the top model of the Universal Milling Machine series. The series offers an extra-large work area and powerful main spindle drives. Electronic stops, electronic hand-wheels and additional milling functions provide many advantages of CNC production technology even without programming. Typical applications include toolmaking, manufacturing and training.

Highlights

• Large work area
• Servo-conventional feed technology
• Preloaded ball screws on all axes
• Electronic hand-wheels
• Universal cutter head with 2 swivel axes
• Infinitely variable spindle speed

Product details

• Integrated electronics simplify conventional milling while increasing precision and efficiency.
• New generation of conventional mills with electronics developed and made in Germany.
• User-friendly layout, higher precision and improved productivity versus traditional machines.
• Robust, torsion-resistant knee-and-column frame with a large working area despite compact overall dimensions.
• Console supported by an additional guide system for increased table load capacity.
• Work table runs in an oversized dovetail guide on X axis for excellent damping and fine adjustment.
• Box ways with wide support bases for maximum dimensional stability guiding console and top beam.
• All guides are hardened, ground and lubricated via a central lubrication system.
• The complete drive is integrated in the heavy top beam for efficient power transmission and low vibration.
• Universal cutter head swivels on two axes to position the cutter spindle at virtually any spatial angle and quickly to the horizontal plane.
• Robust 2-step gears, hardened and ground, provide a wide, continuously variable speed range and quiet, high-load operation.
• Powerful servo motors enable infinitely variable feed speeds and rapid feeds on all axes.
• Preloaded ball screws on all axes ensure precise, backlash-free positioning with minimal wear.
• Electronic spindle load indicator supports efficient use of machine and tool capacities and helps avoid overload.
• Electronic hand-wheels on all axes and joystick control allow smooth micro-control and operator comfort.
• Positioning control for traveling pre-selected paths on all axes; electronic fixed stops (3 positions per axis) with push-button convenience.
• Integrated position indicator with precision glass scale; X.Pos 3.2 display generation available.
• Standard equipment includes coolant system, LED work lamps and a selection of operating tools.

Working area
Table dimensions: 1.235 mm x 460 mm
Table load capacity: 800 kg
Number of T-slots: 5 positions
T-slots width: 18 mm
T-slots spacing: 80 mm

Travels
Travel X-axis: 900 mm
Travel Y-axis: 650 mm
Travel Z-axis: 450 mm

Milling head
Speed range (2): 30-390 / 390-2050 1/min
Spindle mount: SK 40 DIN 2080
Swivel angle: 360°
Spindle center-to-table distance: 30 mm - 480 mm

Rapid feed
Rapid feed X-axis: 2.200 mm/min
Rapid feed Y-axis: 2.200 mm/min
Rapid feed Z-axis: 1.100 mm/min

Feed
Feed speed X-axis: 10 mm/min - 1.000 mm/min
Feed speed Y-axis: 10 mm/min - 1.000 mm/min
Feed speed Z-axis: 5 mm/min - 640 mm/min

Drive capacity
Motor rating main drive: 7,5 kW
Motor rating X axis feed: 3,6 kW
Motor rating Y axis feed: 3,6 kW
Motor rating Z axis feed: 5,5 kW
Motor rating coolant pump: 0,13 kW

Measures and weights
Overall dimensions (length x width x height): 2 m x 2,5 m x 2 m
Weight: 4.000 kg

Technical specifications

• Model: Servomill® UWF 900
• Brand: KNUTH
• Table dimensions: 1.235 mm x 460 mm
• Table load capacity: 800 kg
• T-slots: 5 positions, 18 mm width, 80 mm spacing
• Travels (X / Y / Z): 900 mm / 650 mm / 450 mm
• Milling head speed ranges: 30-390 / 390-2050 1/min
• Spindle mount: SK 40 DIN 2080
• Swivel: 360°; spindle center-to-table: 30 mm - 480 mm
• Rapid feeds (X / Y / Z): 2.200 / 2.200 / 1.100 mm/min
• Feed ranges (X / Y / Z): 10 - 1.000 / 10 - 1.000 / 5 - 640 mm/min
• Motor ratings (main / X / Y / Z / coolant): 7,5 kW / 3,6 kW / 3,6 kW / 5,5 kW / 0,13 kW
• Overall dimensions: 2 m x 2,5 m x 2 m
• Weight: 4.000 kg
• Standard features: electronic hand-wheels, preloaded ball screws on all axes, automatic central lubrication, coolant system, LED work light, operating tools, control with X.Pos 3.2 and extended functions
