3-axis milling machine MF 5 VP

universalfor steelfor non-ferrous metals

Product overview

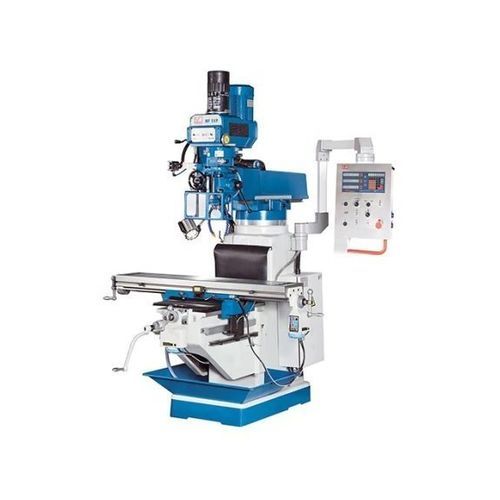

The MF 5 VP is a versatile universal milling machine designed for industrial machining of steel and non-ferrous metals. Top model of the MF series with SK 40 spindle mount and approx. 30% higher unladen weight for increased rigidity. X and Y axes feature infinitely variable feed devices; vertical milling head is swiveling and offers a wide spindle speed range. Standard equipment includes a four-stage automatic quill feed, pneumatic tool clamping and a large clamping table for workpieces and fixtures.

Highlights

• Swiveling vertical cutter head with quill feed
• Pneumatic tool clamping
• Infinitely variable spindle speed
• Table/axis feed with rapid traverse
• Heavy-duty construction with wide guideways

Product details

• Rated motor power: 3.75 kW
• Spindle mount: SK 40 (DIN 2080 / ISO 40)
• Three automatic quill feeds and manual coarse/fine quill feed
• Quill with micrometer depth stop
• Reversing switch for forward/reverse spindle rotation
• Spindle brake
• Infinitely variable spindle speeds
• Head swivels ±90° left and right
• TV 1000 table feed on X and Y, infinitely variable with rapid feed
• Coolant system and chip tray
• Central lubrication

3-axis position indicator (X.Pos 3.2) — features & benefits

• Higher positioning accuracy
• Lower error rate and increased process reliability
• Faster cycle times and productivity gains
• Easy-to-read display and operator-oriented keyboard
• Resolution: 0.01 / 0.005 mm
• Default coordinates and axis hold when display is off
• Hole circle calculation and calculator function
• Storage for 10 tools, radius/diameter toggle, mm/inch conversion
• Maintenance-free operation and simple expansion

Standard equipment

• 3-axis position indicator X.Pos 3.2
• Table feed TV 1000 on X and Y axes
• Pneumatic tool clamping
• Chip tray
• Coolant system
• Central lubrication
• Horizontal guideway cover
• Operating tools
• Operator manual

Technical specifications
Working area
Table set-up area: 1,370 mm x 250 mm
Table load capacity (max.): 350 kg

Travels
Travel X-axis: 800 mm
Travel Y-axis: 390 mm
Travel Z-axis: 380 mm

Vertical milling head
Spindle speed (vertical): 70 1/min - 3,600 1/min
Spindle mount: SK 40 (DIN 2080 / ISO 40)
Quill stroke: 127 mm

Feed
Quill feeds: (3) 0.04 / 0.08 / 0.15 mm/rev

Drive capacity
Motor rating main drive: 3.75 kW

Dimensions and weight
Overall dimensions (L x W x H): 2.54 m x 2.16 m x 2.24 m
Weight: 1,590 kg

Characteristics / technical data

• Model: MF 5 VP
• Spindle mount: SK 40 (DIN 2080 / ISO 40)
• Main motor: 3.75 kW
• Spindle speed range: 70 - 3,600 1/min (infinitely variable)
• Quill stroke: 127 mm, quill feeds: 0.04 / 0.08 / 0.15 mm/rev
• Travels (X x Y x Z): 800 x 390 x 380 mm
• Table area: 1,370 x 250 mm, max table load: 350 kg
• Features: swiveling vertical head ±90°, pneumatic tool clamping, 4-stage automatic quill feed, TV 1000 table feed with rapid traverse, coolant system, chip tray, central lubrication, wide rigid guideways
