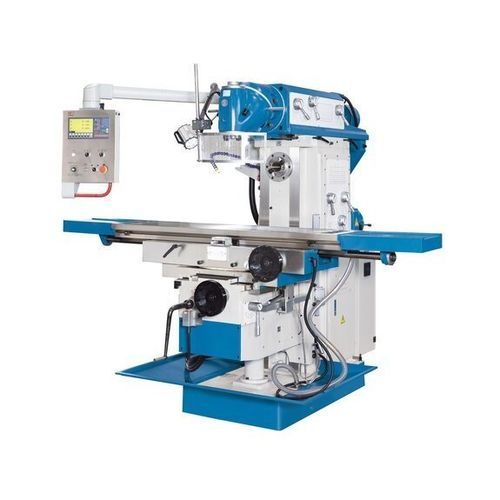

3-axis milling machine UWF 6

horizontalverticaluniversal

Description
This universal milling machine, model UWF 6, is the largest unit in the UWF series. It is designed for heavy-duty conventional milling tasks on large workpieces and combines extended travels, a wide table and dual vertical/horizontal spindle capability for flexible machining operations.

Highlights

• Universal cutter head swivels on 2 levels (360°)
• Independent horizontal milling spindle with dedicated drive
• Swiveling milling table (tilt capability up to 45°)
• Servo-feed on all axes with high rapid-feed rates
• Extensive standard equipment (cooling system, chip tray, 3-axis position display)

Working area
Table dimensions: 1.600 mm x 360 mm
Table load capacity (max.): 500 kg
Number of T-slots: 3
T-slot (width x spacing): 18 mm x 80 mm

Travels
Travel X-axis: 1.300 mm
Travel Y-axis: 300 mm
Travel Z-axis: 400 mm

Milling Head
Speed range (vertical): 60 1/min - 1.750 1/min
Spindle mount: SK 50 (DIN 2080)
Swivel angle: 360°
Upper beam travel: 550 mm
Spindle center-to-table distance: 190 mm - 590 mm

Rapid feed
Rapid feed X-axis: 1.200 mm/min
Rapid feed Y-axis: 800 mm/min
Rapid feed Z-axis: 600 mm/min

Horizontal Milling Spindle
Spindle speed (horizontal): 60 1/min - 1.800 1/min
Spindle mount: SK 50 (DIN 2080)
Horizontal spindle-to-table surface distance: 20 mm - 420 mm
Spindle axis-to-top beam distance: 200 mm

Feed
Feed speed X-axis: 30 mm/min - 750 mm/min
Feed speed Y-axis: 20 mm/min - 500 mm/min
Feed speed Z-axis: 15 mm/min - 375 mm/min

Drive capacity
Motor rating horizontal spindle: 5.5 kW
Motor rating vertical spindle: 4 kW

Measures and weights
Overall dimensions (L x W x H): 2.52 m x 2.10 m x 2.00 m
Weight (net): approx. 2,950 kg

Standard equipment & construction features

• Cast-iron HT-200 bed with reinforced ribs for high rigidity
• Hardened and ground guideways for long-term precision
• Swiveling table up to 45° with large clamping surface
• Separate drives for vertical and horizontal spindles
• Bronze plain bearing for horizontal spindle counter-support
• 3-axis position display with tool memory and mm/inch conversion
• Cooling unit, chip tray and work lamp included

Technical specifications

• Model: UWF 6
• Type: Universal milling machine
• Table: 1.600 x 360 mm
• Table capacity: 500 kg
• Travels (X / Y / Z): 1.300 / 300 / 400 mm
• Rapid feeds (X / Y / Z): 1.200 / 800 / 600 mm/min
• Vertical spindle: SK 50 (DIN 2080), 60–1.750 1/min, motor 4 kW
• Horizontal spindle: SK 50 (DIN 2080), 60–1.800 1/min, motor 5.5 kW
• Upper beam travel: 550 mm
• Spindle centre-to-table: 190–590 mm
• Overall dimensions: 2.52 m x 2.10 m x 2.00 m
• Net weight: approx. 2.950 kg
