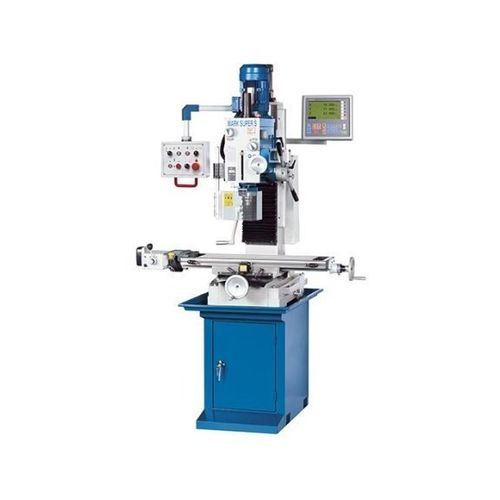

Vertical drilling and milling machine Mark Super S

3-axisfor steelvariable speed

Overview
The Mark Super S series are compact drill-milling machines combining a powerful drive and a wide speed range. They perform both drilling and milling of steel and non‑ferrous metals and are intended for workshops, maintenance departments, small-series production and training facilities.

Key features

• Infinitely variable X-axis feed
• Automatic drilling feed with digital depth indicator
• Geared milling head for high‑power machining
• Swiveling head (±45°) for versatile applications
• Stepless spindle speed with digital display (SV model)

Applications

• Single-piece machining and prototype work
• Small-batch production and maintenance operations
• Training and technical education workshops

Standard equipment

• 3-axis position indicator X.Pos 3.2
• Automatic quill feed
• Machine base with storage compartment
• Table feed TV 1000
• 13 mm drill chuck
• Tool-holder bit
• Operator manual

Technical specifications
Working area
Table dimensions: 800 mm x 240 mm
Drilling capacity in steel: 32 mm
Shaft milling: 32 mm
Head elevation: 350 mm
T-slots on table: 3; T-slot (width x spacing): 14 mm x 80 mm

Travels
X-axis travel (manual / automatic): 560 / 480 mm
Y-axis travel: 190 mm

Vertical milling head
Spindle mount: MT 4 (MK4/DIN 228)
Quill diameter / stroke: 75 mm / 120 mm
Spindle nose-to-table distance: 460 mm
Throat (overarm): 258 mm
Head swivel range: ±45°
Speed range: (12) 75–3200 rpm

Feed
Quill feeds: 0.10; 0.18; 0.26 mm/rev

Drive capacity
Main motor rating: 1.5 / 1.1 kW

Measures and weights
Overall dimensions (L x W x H): 1.25 m x 0.95 m x 2.13 m
Weight: 380 kg

Technical data summary

• Model: Mark Super S (SV option with stepless speed control)
• Type: Drill-milling machine for steel and non-ferrous metals
• Table: 800 x 240 mm
• Drilling capacity: 32 mm
• Spindle attachment: MK4
• Quill stroke / diameter: 120 mm / 75 mm
• Speed steps: 12 (75–3200 rpm)
