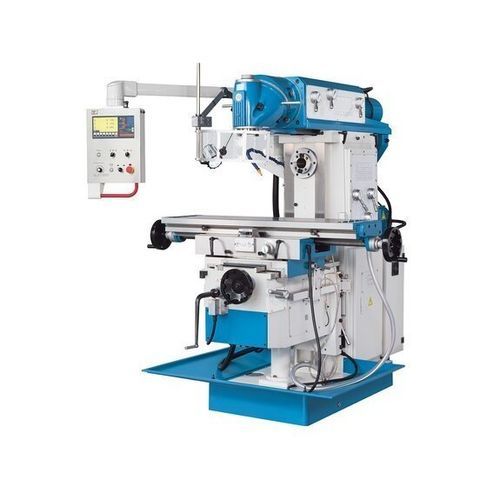

Universal milling machine UWF 5

servo-drivenindustrial

Product description
The UWF 5 is a universal milling machine from the UWF series offering a large working area, a two-plane swivelling universal milling head and a horizontal spindle with independent drive. Stepped, electrically switchable servomotor feed is provided on all axes. The machine is supplied with comprehensive standard equipment and is suitable for repair workshops, training centres and production departments requiring flexibility and precise conventional milling.

Highlights

• Universal milling head swivels on two planes (360° swivel capability)
• Independent horizontal milling spindle drive
• Swivelling milling table with ±45° range
• Automatic stepped servo feed on all axes with rapid feed functions
• Comprehensive standard equipment (coolant system, chip tray, DRO, service tools)

Technical data
Working area
Table dimensions: 1.325 mm x 360 mm
Maximum table load: 500 kg
Table swivel range (r/l): 45°
Number of T-slots: 3
T-slot (width x spacing): 18 mm x 80 mm

Travels
Travel X-axis: 750 mm
Travel Y-axis: 280 mm
Travel Z-axis: 390 mm

Milling Head
Speed range (vertical): 60 1/min - 1.750 1/min
Spindle mount: SK 50 DIN 2080
Swivel angle: 360°
Upper beam travel: 550 mm
Spindle center-to-table distance: 175 mm - 565 mm

Rapid feed
Rapid feed X-axis: 1.200 mm/min
Rapid feed Y-axis: 800 mm/min
Rapid feed Z-axis: 600 mm/min

Horizontal Milling Spindle
Spindle speed (horizontal): 60 1/min - 1.800 1/min
Spindle mount: SK 50 DIN 2080
Throat (overhang): 380 mm - 930 mm

Feed
Feed speed X-axis: 30 mm/min - 750 mm/min
Feed speed Y-axis: 20 mm/min - 500 mm/min
Feed speed Z-axis: 15 mm/min - 375 mm/min

Drive capacity
Motor rating horizontal spindle: 5,5 kW
Motor rating vertical spindle: 4 kW
Motor rating X axis feed: 1,5 kW
Motor rating Y axis feed: 1,5 kW
Motor rating Z axis feed: 1,5 kW
Motor rating coolant pump: 0,09 kW

Measures and weights
Overall dimensions (L x W x H): 1,8 m x 2,1 m x 2 m
Weight: 2.850 kg

Product details

• Rigid machine bed in HT-200 cast iron with heavy ribbing for stability
• Precision-ground, surface-hardened guideways for long-term accuracy
• Hardened and ground gears in headstock for quiet, precise operation
• Combination of both swivel planes allows setting nearly any spatial angle
• Powerful servo axis motors enable finely stepped motorised feed on all axes
• Telescopic covers on Y axis to protect feed spindle
• Control panel swivels to either side and includes integrated position indicator (DRO)
• Coolant system and chip tray included

Technical specifications

• Model: UWF 5
• Table: 1.325 x 360 mm; max. table load 500 kg; 3 T-slots (18 mm x 80 mm)
• Travels (X / Y / Z): 750 mm / 280 mm / 390 mm
• Vertical spindle: SK 50, 60 - 1.750 1/min, spindle center-to-table 175 - 565 mm
• Horizontal spindle: SK 50, 60 - 1.800 1/min, throat 380 - 930 mm
• Rapid feeds (X / Y / Z): 1.200 / 800 / 600 mm/min
• Feed speeds (X / Y / Z): 30–750 / 20–500 / 15–375 mm/min (stepped servo feed)
• Motor ratings: horizontal 5,5 kW; vertical 4 kW; axis feeds 1,5 kW each; coolant pump 0,09 kW
• Overall dims (L x W x H): 1,8 m x 2,1 m x 2 m; Weight: 2.850 kg
