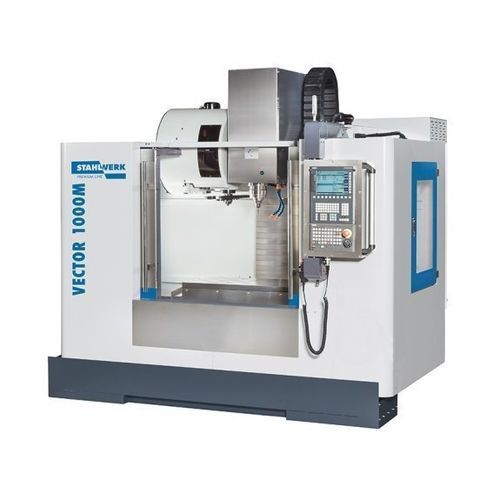

Vertical CNC machining center VECTOR 1000 M Si

SK4024 toolscompact

Overview
The VECTOR 1000 M SI is a compact, preconfigured vertical CNC machining centre engineered for complex production tasks. Designed with FEM analysis and manufactured under strict quality control, the machine frame features Meehanite casting and a delta column for high structural stability. Components and layouts support multi-shift operation and industrial automation integration.

Key features

• Extra-wide Y-shaped Meehanite column for maximum rigidity
• 30-bar internal spindle coolant (CTS) option for improved chip evacuation and surface quality
• Dual-arm tool changer with 24 stations for high tool capacity
• High rapid feeds and work feeds for efficient cycle times
• Siemens Sinumerik 828D control with ShopMill and ProgramGUIDE

Machine design & components

• Rigid C-frame construction with low centre of gravity and compact footprint
• 30 mm preloaded ball screws and digital drive package for high torque and stable table guidance
• Linear/roller guides on X, Y and Z to reduce friction and improve accuracy
• Spindle supported on multiple bearings to absorb machining forces

Spindle & tooling

• Spindle mount: SK40 ISO 7388-1 (DIN 69871)
• Max spindle speed: 10,000 min⁻¹; constant torque: 57 Nm; spindle bearings: 7012 × 4
• Toolchanger: dual‑arm, 24 positions; tool max Ø × L: 80 × 350 mm; tool max weight: 7 kg
• Tool change times: 1.8 s (tool-to-tool) and 3.9 s (chip-to-chip)
• 30-bar CTS available through spindle for high-pressure internal coolant

Control & software — Siemens Sinumerik 828D

• Compact, robust control with ShopMill for fast single-part programming and ProgramGUIDE for series production
• SINUMERIK MDynamics with Advanced Surface for optimized surface finish
• Animated Elements, measuring cycles, DXF reader and 4-axis simultaneous interpolation
• Data transfer via USB, CF and Ethernet

Technical specifications

• Working area
  Table dimensions: 1,100 × 550 mm
  Table load capacity: 800 kg
  Spindle nose‑to‑table distance: 150–700 mm
  Spindle center‑to‑column: 619 mm
• Travels
  X: 1,000 mm; Y: 550 mm; Z: 550 mm
  Guideway: Roller (linear roller guides)
• Spindle
  Speed: 10,000 min⁻¹; Mount: SK40; Torque: 57 Nm; Bearings: 7012 × 4; Drive: belt (Riemenantrieb)
• Feeds
  Rapid X/Y: 36,000 mm/min; Rapid Z: 15,000 mm/min; Work feed: up to 10,000 mm/min
• Tooling
  Toolchanger: dual‑arm, 24 positions; Max tool Ø×L: 80×350 mm; Max tool weight: 7 kg; Tool change t/t: 1.8 s; Chip-to-chip: 3.9 s
• Accuracies
  Repeatability: ±0.003 mm; Positioning accuracy: ±0.005 mm
• Drive & electrical
  Main drive continuous: 9 kW; Total power approx.: 20 kVA; Voltage: 400 V; Frequency: 50 Hz
• Dimensions & weight
  Overall (L×W×H): 2.62 × 2.2 × 2.7 m; Weight: ≈4,600 kg

Applications & customization

• High-volume milling, mould and die components, precision parts production across multiple shifts
• Options: spindle speed upgrades, alternative tool interfaces (BBT/HSK), rotary tables, extended Z travel, automation interfaces and probing systems
