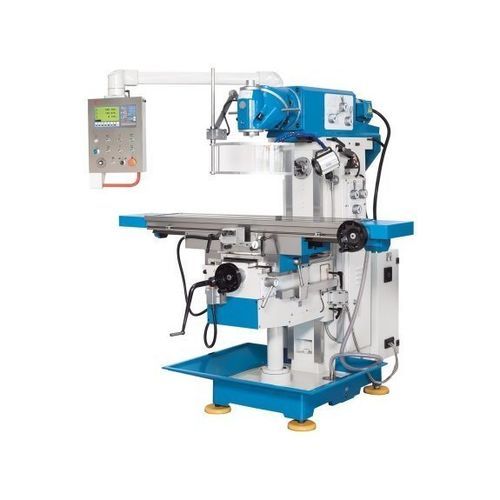

3-axis milling machine UWF 3.2

horizontalverticaluniversal

Description
The universal milling machine UWF 3.2 extends the proven UWF 3 concept with a slightly higher speed range and an infinitely variable servo-feed. It combines a large table area, a universal milling head and a horizontal spindle (SK 40 DIN 2080), making it suitable for repair workshops, training departments and small production runs.

Highlights

• Universal cutter head swivels on two planes for horizontal and vertical machining
• Dedicated horizontal milling spindle with outer arbor support
• Swivelling milling table with large setup area (1.370 x 320 mm)
• Servo-feed on all axes with rapid feed for fast positioning
• Comprehensive standard equipment including coolant system and chip tray

Product details

• Extremely rigid machine bed in high-strength HT-200 cast iron with heavy ribs
• Large rectangular guideways for precision and quiet operation under high loads
• Precision-ground, hardened guideway surfaces for long-term accuracy and wear resistance
• Milling table with large clamping area and longitudinal swivelling
• Quiet, precision-made headstock gears with hardened and ground gears
• Universal cutter head swivels on two levels for quick change between horizontal and vertical machining
• Combined swivel positions allow setting almost any spatial angle
• Standard outer arbor support with bronze plain bearings for long milling arbors in the horizontal spindle
• Powerful servo-motor for infinitely variable feeds on all three axes
• Minimum downtime due to rapid positioning and rapid feeds in all axes
• Swivelling control panel for comfortable operation
• Coolant system and chip tray included

Technical specifications

• Working area - Table set up area: 1.370 mm x 320 mm
• Working area - Table load capacity (max.): 260 kg
• Working area - Table swivel range r/l: 45 deg
• Working area - Number of T-slots: 3 positions (14 mm x 80 mm)
• Travels - Travel X-axis: 1.000 mm
• Travels - Travel Y-axis: 360 mm
• Travels - Travel Z-axis: 400 mm
• Vertical milling head - Spindle speed (vertical): 45 1/min - 1.660 1/min
• Vertical milling head - Spindle mount: SK 40 DIN 2080
• Vertical milling head - Throat: 300 mm - 765 mm
• Vertical milling head - Vertical spindle-to-table surface distance: 260 mm - 660 mm
• Vertical milling head - Milling head swivel range: 360 deg
• Rapid feed - Rapid feed X-/Y-axis: 1.335 mm/min
• Rapid feed - Rapid feed Z-axis: 1.000 mm/min
• Horizontal milling spindle - Spindle speed (horizontal): 35 1/min - 1.500 1/min
• Horizontal milling spindle - Spindle mount: SK 40 DIN 2080
• Horizontal milling spindle - Horizontal spindle-to-table surface distance: 75 mm - 475 mm
• Feed - Feed speed X-axis: 30 mm/min - 830 mm/min
• Feed - Feed speed Y-axis: 30 mm/min - 830 mm/min
• Feed - Feed speed Z-axis: 23 mm/min - 625 mm/min
• Drive capacity - Motor rating horiz./vert.: 3 kW
• Measures and weights - Overall dimensions (L x W x H): 1,9 m x 1,75 m x 2 m
• Measures and weights - Weight: 1.950 kg
