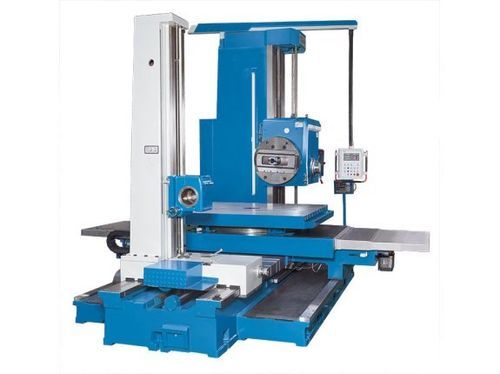

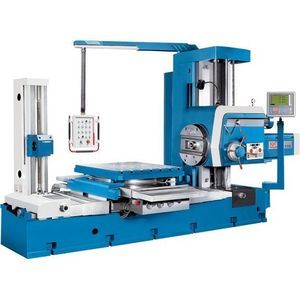

Conventional boring milling machine BO 130

horizontalcolumn type

Description
The BO 130 is a conventional fixed-column boring and milling machine designed for horizontal multi-sided drilling and milling of workpieces up to 10 t. The movable table rotates 360° and the drill head runs on the column while the spindle provides a long W-axis stroke. High drive power, automatic feeds on all axes and rapid traverses enable efficient metal removal and short non-productive times. The machine also features a long-stroke facing slide for facing operations.

Highlights

• Large working envelope with W-axis and long-stroke facing slide
• Thread-cutting unit included
• Rotatable clamping table with sighting device for four indexed positions
• Telescopic stainless-steel covers on all guides

Technical specifications (summary)

• Model: BO 130
• Drilling capacity: 60 mm
• Spindle diameter: 130 mm (mount SK 50)
• Table set-up area: 1,600 mm x 1,800 mm
• Table load capacity: 10,000 kg
• Table rotation: 4 x 90° (360° rotatable)
• Spindle axis-to-table distance: 0 mm – 1,800 mm
• Rotary table speed: 1.2 1/min
• Travel X/Y/Z/W: 2,000 / 1,800 / 1,500 / 900 mm
• Facing slide travel: 250 mm
• Spindle speed range: 4 – 800 1/min; spindle torque (max): 3,136 Nm
• Facing slide speed: 2.5 – 125 1/min; facing slide torque (max): 4,900 Nm
• Rapid feed X/Y/W: 2,500 mm/min
• Feed ranges X/Y/Z/W: 0.01 mm/R – 6 mm/R; facing slide feed: 0.08 mm/min – 12 mm/min
• Read-out accuracy (optic): 0.005 mm; counter-bore accuracy: H7 Ra-1.6 µm
• Motor rating main drive: 15 kW; servo drive: 5.5 kW; hydraulic pump: 0.37 kW
• Overall dimensions (L x W x H): 7.03 m x 4.66 m x 3.8 m; Weight: 29,300 kg

Standard equipment

• 3-axis position indicator X.Pos 3.2 (new generation with integrated turning functions)
• Wedge strip for alignment
• Central lubrication
• Work lamp
• Foundation bolts
• Operating tools and manual

Optional equipment

• Boring and milling tool holders for facing plate (BO 130)
• Boring head for BO 130
• Option B-axis DRO for BO 130
• Tailstock — H 2600 mm; bore 220 mm; stroke 1800 mm; travel on bed 600 mm; motor 1.1 kW; weight 800 kg
• Various rotary tables, dividing heads, vises, chucks and clamping kits
