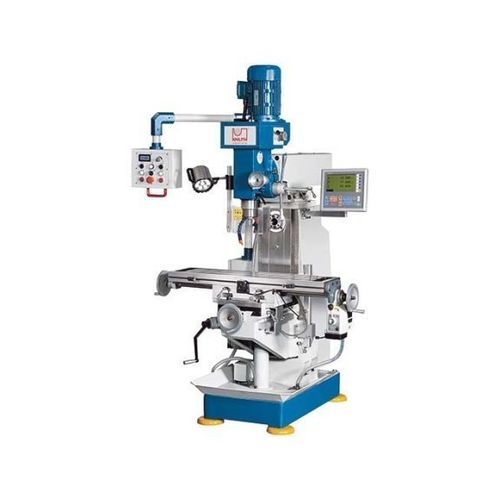

3-axis milling machine VHF 1.1

horizontalverticaluniversal

Description
The universal milling machine of the VHF series features a horizontal spindle, a swiveling vertical milling head and a large clamping table. Spindle speed and X-axis feed are infinitely variable. With its comprehensive standard equipment, this model is suitable for a wide range of applications in training departments, repair shops and model-making workshops.

Highlights

• Swiveling cutter head with manual quill feed
• Horizontal milling spindle with independent drive
• Infinitely variable spindle speed
• X-axis feed (automatic advance + infinitely variable speed)
• Comprehensive standard equipment (coolant system, chip tray, lamp, tooling)

Working area
Drilling capacity : 25 mm
Milling diameter in steel (max.) : 18 mm
Table set up area : 1.000 mm x 240 mm
Table load capacity (max.) : 150 kg
Table angle adjustment max. (left/right) : 30°/40°

Travels
Travel X-axis : 535 mm
Travel Y-axis : 160 mm
Travel Z-axis : 300 mm

Vertical milling head
Spindle speed (vertical) : 100 1/min - 2.000 1/min
Spindle mount : SK 40 DIN 2080
Quill stroke : 120 mm
Throat : 200 mm - 700 mm
Spindle nose-to-table surface distance : 65 mm - 385 mm

Horizontal milling spindle
Spindle speed (horizontal) : 60 1/min - 1.350 1/min
Horizontal spindle-to-table surface distance : 0 mm - 300 mm

Drive capacity
Motor rating horizontal spindle : 2,2 kW
Motor rating vertical spindle : 1,5 kW

Measures and weights
Overall dimensions (length x width x height) : 1,38 m x 1,22 m x 2,15 m
Weight : 1.000 kg

Technical specifications

• Model: VHF 1.1
• Spindle mounts: SK 40 (vertical); horizontal spindle with independent drive
• Vertical spindle speed: 100 - 2.000 1/min; Horizontal spindle speed: 60 - 1.350 1/min
• Quill stroke: 120 mm
• Table set up area: 1.000 mm x 240 mm; table load capacity: 150 kg
• Table angle adjustment: up to 30°/40° (left/right)
• Travels (X/Y/Z): 535 mm / 160 mm / 300 mm
• Horizontal spindle-to-table distance: 0 - 300 mm
• Spindle nose-to-table distance: 65 - 385 mm
• Motor ratings: horizontal 2,2 kW; vertical 1,5 kW
• Overall dimensions: 1,38 m x 1,22 m x 2,15 m; Weight: 1.000 kg
• Standard inclusions: coolant system, chip tray, swiveling cutter head, X-axis feed (automatic advance + infinitely variable speed), work lamp, operating tools
