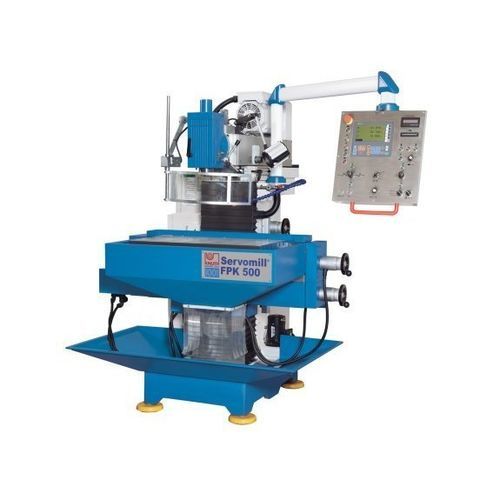

3-axis CNC milling machine Servomill® FPK 500

universalSK40

Overview
This versatile tool and milling machine has become indispensable in the mechanical manufacturing of tools and molds. Its compact design offers high flexibility and simple operation. Equipped with electronic stops, electronic handwheels and additional milling functions, the Servomill brings many advantages of CNC production technology to conventional milling without requiring complex programming. The machines are mainly used in toolmaking, production and training.

Highlights

• Servo feed technology with electronic handwheels
• Preloaded ball screws in all axes (zero backlash)
• 3-position electronic stops per axis
• Large vertical console and work table
• Vertical and horizontal spindle options (SK 40 DIN 2080)
• Infinitely variable spindle speed

Working area
Table dimensions: 800 mm x 400 mm
Vertical table: 1.020 mm x 225 mm
Table load capacity (max.): 200 kg
Number of T-slots: 6 positions (14 mm x 63 mm)
Vertical table T-slots: 3 positions (14 mm x 63 mm)

Travels
Travel X-axis: 500 mm
Travel Y-axis: 400 mm
Travel Z-axis: 400 mm

Milling Head
Speed range, low: 40 1/min - 260 1/min
Speed range, high: 260 1/min - 2.000 1/min
Spindle speed: 40 1/min - 2.000 1/min
Spindle mount: SK 40 DIN 2080
Swivel angle: 90°
Quill travel: 60 mm
Spindle nose-to-table distance: 50 mm - 450 mm
Spindle nose-to-column distance: 170 mm - 570 mm

Rapid feed
Rapid feed X-axis: 1.200 mm/min
Rapid feed Y-axis: 1.200 mm/min
Rapid feed Z-axis: 1.200 mm/min

Horizontal Milling Spindle
Spindle mount: SK 40 DIN 2080
Spindle center-to-table distance: 145 mm - 545 mm

Feed
Work feed X-axis: 10 mm/min - 1.000 mm/min
Work feed Y-axis: 10 mm/min - 1.000 mm/min
Work feed Z-axis: 10 mm/min - 1.000 mm/min

Drive capacity
Motor rating main drive: 3,7 kW
Motor rating coolant pump: 0,13 kW
Feed X-axis torque: 7,7 Nm
Feed Y-axis torque: 7,7 Nm
Feed Z-axis torque: 10 Nm

Measures and weights
Overall dimensions (L×W×H): 1,5 m x 1,7 m x 1,8 m
Weight: 1.550 kg

Product Details
The FPK series is a modern interpretation of the classic universal tool milling machine. The console-type machine stand is made of high-quality grey cast iron for precision and durability. Operating elements are concentrated on the right-hand side for operator control. Box guides provide large contact surfaces for dimensional stability and load-bearing capacity. The main spindle gearbox is integrated in the upper beam for efficient power transmission and low vibration. The robust 2-stage gearbox with hardened and ground gears offers a wide, infinitely variable speed range. The vertical milling head can be swiveled on both sides; the quill is manually movable and the vertical head can be removed to access the horizontal spindle holder. A counter-holder is standard for long milling arbours.

Feed technology
Powerful servomotors enable infinitely variable feed speeds and rapid traverse in all axes. Preloaded ball screws in all axes guarantee precise, smooth and low-wear positioning without backlash and a long service life.

Equipment
Standard equipment includes a powerful coolant system, LED work lighting and a comprehensive tool package with long arbours and collets. Integrated electronic functions provide positioning control, electronic spindle load indicator, electronic handwheels, joystick axis movement, and the X.pos 3.2 position indicator.

Servomill - Highlights

• Electronics developed and built in Germany
• Positioning control for travelling pre-selected paths on all axes
• Zero-backlash preloaded ball screws
• Servo-motors on all axes with infinitely variable feed and rapid feed
• Electronic spindle load indicator
• Electronic handwheels on all axes
• X, Y and Z axis movement via joystick
• Integrated position indicator with precision glass scale (X.pos 3.2)
• Feed can be synchronized with spindle speed

Usage advantages

• Intuitive operation and compact, practical control layout
• Automatic, infinitely variable feed on all axes
• Set limit stops on any axis (3 stop positions per axis)
• High positioning accuracy via electronic handwheels and servo drives
• Enclosed drives and measuring systems reduce maintenance
• Designed for continuous operation with premium drive components

Specifications / technical data

• Model: Servomill® FPK 500
• Manufacturer: KNUTH
• Table dimensions: 800 × 400 mm
• Travels (X×Y×Z): 500 × 400 × 400 mm
• Spindle speed range: 40 – 2.000 1/min
• Spindle mount: SK 40 (DIN 2080)
• Main drive motor: 3,7 kW
• Table load capacity: 200 kg
• Number of T-slots: 6 (14 mm × 63 mm)
• Rapid feed (all axes): 1.200 mm/min
• Work feed range (each axis): 10 – 1.000 mm/min
• Overall dimensions (L×W×H): 1,5 m × 1,7 m × 1,8 m
• Weight: 1.550 kg
• Position indicator: X.pos 3.2
• Standard features: coolant system, LED work light, electronic handwheels, preloaded ball screws, automatic central lubrication (depending on configuration)
