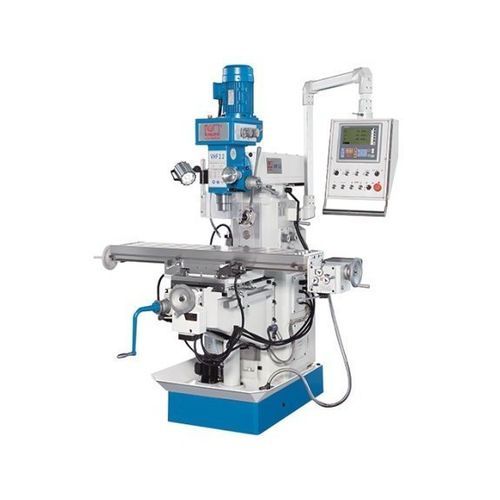

3-axis milling machine VHF 2.2

universalfor steelautomatic feed

Description
The VHF 2.2 universal milling machine offers long travels and separate vertical and horizontal spindles with independent drives for powerful machining. The vertical head swivels (±45°) and the quill is movable. Models in this series are suitable for repair shops and training workshops.

Highlights

• Tilting vertical milling head
• Automatic feed in X and Y axes
• Horizontal spindle with counter holder
• Extensive package of standard accessories

Working area
Drilling capacity in steel: 30 mm
Max. end mill diameter: 25 mm
Tapping capacity, steel: M16
Max. face mill diameter: 100 mm
Table set up area: 1.270 mm x 280 mm
Table load capacity (max.): 150 kg

Travels
Travel X-axis: 700 mm
Travel Y-axis: 210 mm
Travel Z-axis: 310 mm

Vertical milling head
Spindle speed (vertical): 115 1/min - 1.750 1/min
Spindle mount: SK 40 DIN 2080
Quill stroke: 120 mm
Throat: 200 mm - 650 mm
Spindle nose-to-table surface distance: 50 mm - 375 mm
Milling head swivel range: ±45°

Rapid feed
Rapid feed Z-axis: 380 mm/min

Horizontal Milling Spindle
Spindle speed (horizontal): 40 1/min - 1.300 1/min
Spindle mount: ISO 40
Horizontal spindle-to-table surface distance: 0 mm - 310 mm

Feed
Feed speed X-axis: 16 mm/min - 380 mm/min
Feed speed Y-axis: 0 mm/min - 700 mm/min

Drive capacity
Motor rating horizontal spindle: 2.2 kW
Motor rating vertical spindle: 0.85 kW - 1.5 kW

Measures and weights
Overall dimensions (L x W x H): 1.7 m x 1.45 m x 2.45 m
Weight: 1.400 kg

Product details

• High price/performance ratio achieved through standardized VHF assemblies and high-volume production
• Extremely rigid cast-iron machine bed with heavy ribbing
• Precision-ground guideways with hardened surfaces for long-term accuracy and wear resistance
• Large milling table setup area
• Vertical and horizontal spindles each have separate drives with gearbox for maximum machining power
• Vertical head swivels both sides (±45°); quill feed via capstan or fine-feed hand wheel
• For horizontal spindle work, the complete top beam/head assembly can be rotated ±180° on the column
• Standard outer arbor support with bronze plain bearings for long milling arbors in the horizontal spindle
• Feed system with manual gearbox on X axis and infinitely variable feed unit on Y axis
• Height adjustment of the work table via automatic feed; precision feed via hand crank
• Swiveling control panel with integrated position indicator for operator comfort
• Coolant system and chip tray included

Standard equipment

• 3-axis position indicator X.Pos 3.2
• Coolant system
• Work lamp
• Operating tools
• Operating manual
• M16 draw bar
• Outer arbor support for horizontal milling
• Chip tray
• Cutter arbor Ø 27 mm

Technical specifications

• Type: Universal milling machine
• Model: VHF 2.2
• Vertical spindle mount: SK 40 (DIN 2080)
• Horizontal spindle mount: ISO 40
• Vertical spindle speed range: 115 - 1,750 1/min
• Horizontal spindle speed range: 40 - 1,300 1/min
• Travel (X x Y x Z): 700 mm x 210 mm x 310 mm
• Table set up area: 1.270 mm x 280 mm
• Max table load: 150 kg
• Motor rating horizontal spindle: 2.2 kW
• Motor rating vertical spindle: 0.85 kW - 1.5 kW
• Overall dimensions (L x W x H): 1.7 m x 1.45 m x 2.45 m
• Weight: 1.400 kg
