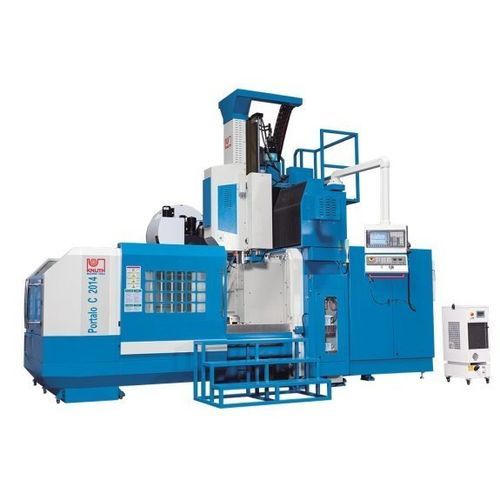

3-axis CNC milling machine Portalo C 2519 CNC

verticalwith moving tablegantry

Description
The Portalo C 2519 CNC is a gantry-type milling machine designed for precision machining of large and heavy workpieces. The machine features a fixed gantry and a movable table, making it suitable for heavy-duty material removal as well as high-speed machining of dies and complex shapes.

Highlights

• High workpiece weight capacity
• Large machining area
• Rigid fixed gantry
• Quick-action 24-position tool changer
• Renishaw tool and workpiece measuring systems

Design and build
The movable setup table combined with a rigid fixed gantry enables machining of large, heavy parts. A combination of linear guides and box/flat ways delivers long service life, high machining speeds and sustained rigidity. Preloaded ball screws and Siemens servo motors provide dynamic and rapid feeds across all axes.

Main spindle

• High drive power and a wide speed range deliver the torque reserve required for heavy cutting operations

Tool changer

• Robust 24-station tool changer with dual-arm gripper for flexible and rapid tool changes

Control

• Siemens 828D control offers intuitive programming and strong service support
• Siemens Shopmill software included to simplify production of complex contours and workpieces

Equipment

• Large sliding doors on the enclosure for easy access and loading
• Renishaw measuring systems for tool and workpiece probing to reduce setup errors and downtime
• Powerful coolant system and included chip conveyor for reliable chip removal
• Automatic central lubrication system for simplified maintenance

Technical Specs — Working area
Table dimensions: 2,500 mm x 1,500 mm
Table load capacity (max.): 7,000 kg
Spindle nose-to-table distance: 150 mm - 1,050 mm
Column distance: 1,900 mm

Technical Specs — Travels
Travel X-axis: 2,600 mm
Travel Y-axis: 1,900 mm
Travel Z-axis: 900 mm

Technical Specs — Headstock
Spindle speed: 6,000 1/min
Spindle mount: SK 50 ISO 7388-1 (DIN 69871)
Spindle diameter: 190 mm

Technical Specs — Rapid feed
X-axis rapid feed: 12 m/min
Y-axis rapid feed: 12 m/min
Z-axis rapid feed: 10 m/min

Technical Specs — Feed
Work feed: 8,000 mm/minTechnical Specs — Tooling
Number of tool stations: 24 positionsTechnical Specs — Accuracies
Positioning accuracy: 0.005/300 mm
Repeatability: 0.005/1000 mm

Technical Specs — Drive capacity
Motor rating main drive: 26 kW
Main drive, continuous load: 22 kW

Technical Specs — Measures and weights
Overall dimensions (L x W x H): 7.5 m x 4.3 m x 4.8 m
Weight: 20,000 kg

Characteristics / technical specifications

• Type: CNC gantry milling machine with fixed portal and movable table
• Working table: 2,500 x 1,500 mm, load capacity 7,000 kg
• Travels: X 2,600 mm, Y 1,900 mm, Z 900 mm
• Spindle: SK 50 (ISO 7388-1 / DIN 69871), 6,000 1/min, 190 mm diameter
• Rapid feeds: X/Y 12 m/min, Z 10 m/min
• Feed (working): up to 8,000 mm/min
• Tool magazine: 24 positions (quick-change)
• Accuracy: Positioning 0.005/300 mm, Repeatability 0.005/1000 mm
• Drive power: main 26 kW (22 kW continuous)
• Machine size / weight: 7.5 m x 4.3 m x 4.8 m / 20,000 kg
