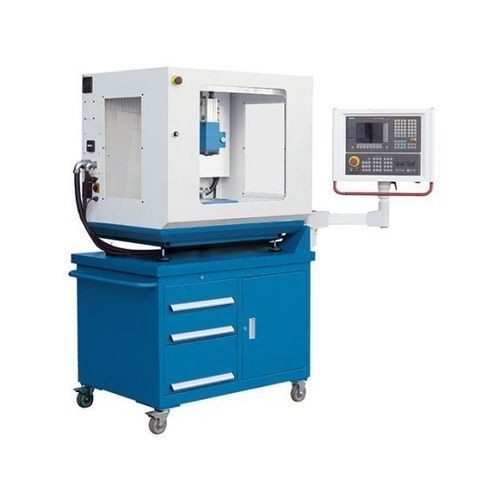

3-axis CNC machining center LabCenter 260 CNC

verticalfor small workpiecescompact

Overview
The LabCenter 260 CNC is a compact, mobile vertical CNC machining center designed for CNC training and small-series production. It reproduces the core functions of larger production machines in a reduced footprint. The continuously variable main spindle runs up to 5000 rpm and the SIEMENS 808D Advance control provides an intuitive operator interface for learning and standard production tasks. ISO 20 spindle taper, automatic tool clamping and a 4-station pick-up tool changer enable practical, hands-on operation.

Highlights

• SIEMENS 808D Advance control for straightforward CNC operation
• Preloaded ball screws on all axes for accurate motion
• Main spindle speeds up to 5000 rpm (ISO 20)
• 4-station pick-up tool changer for quick tool swaps
• Mobile base with integrated storage for tools and accessories

Working area
Table dimensions: 400 mm x 145 mm
Table load capacity: 20 kg
Number of T-slots: 3 positions (12 mm width, 40 mm spacing)
Spindle nose-to-table surface distance: 60 mm – 240 mm
Throat depth: 200 mm

Travels
Travel X-axis: 160 mm
Travel Y-axis: 152 mm
Travel Z-axis: 180 mm

Headstock
Spindle speed: 80 min-1 – 5,000 min-1
Spindle mount: SK 20 (ISO 7388-1 / DIN 69871)

Rapid feed
Rapid feed: 2,000 mm/min

Feed
Work feed: 500 mm/min
Max. torque feed motor: 2.2 Nm

Tooling
Number of tool stations: 4 positions
Tool size Ø x L (max.): 10 mm x 110 mm
Tool weight max.: 0.5 kg
Tool-change time tool/tool: 10 s

Accuracies
Positioning accuracy X/Y/Z: ± 0.015 mm
Repeatability X/Y/Z: ± 0.01 mm

Drive capacity
Motor rating main drive: 1 kW

Measures and weights
Overall dimensions (L x W x H): 1.4 m x 0.9 m x 1.8 m
Weight: 450 kg

Product details

• Machine design: C-frame construction with precisely machined gray cast-iron frame, dovetail guides and preloaded ball screws with servo drives on all axes.
• Spindle: ISO 20 spindle taper with continuous speed range up to 5000 rpm and pneumatic/automatic tool clamping.
• Tool changer: 4-station pick-up changer for reduced non-productive time in training and small-batch production.
• Base: Mobile machine base with drawers and storage space shown in product imagery for workshop and lab environments.

Controls & Software

• SIEMENS 808D Advance CNC control: entry-level industrial control with intuitive operator guidance and high-speed bus communication between CNC and drives.
• Functional advantages: improved acceleration/deceleration capacity, adaptive spindle torque control, maintained cutting speeds for surface quality, SINAMICS drive tolerance and Ethernet interface for diagnostics.

Standard equipment (excerpt)

• Siemens 808D Advance control
• Electronic handwheel
• 4-station tool changer (pickup)
• Mobile base with storage
• Central lubrication
• Work lamp
• Operating tools and documentation

Optional equipment (excerpt)

• ISO 20 / ER16 collet chucks
• ER16 collet sets (various sizes)
• Engraving tool set
• High-precision machine vise (PMS 50)
• Individual collets Ø 1 / 2 / 3 / 4 / 25 mm

Notes
Designed for hands-on CNC training and small-series production. Features such as automatic tool clamping and the 4-station pick-up tool changer support practical exercises and flexible workshop use. Images may show optional accessories and base variants.

Technical specifications

• Model: LabCenter 260 CNC
• Brand: KNUTH
• Table: 400 x 145 mm, load 20 kg, 3 T-slots (12 mm width, 40 mm spacing)
• Travels: X 160 mm, Y 152 mm, Z 180 mm
• Spindle: SK 20 (ISO 7388-1 / DIN 69871), 80–5000 rpm
• Rapid feed: 2,000 mm/min
• Work feed: up to 500 mm/min; feed motor torque 2.2 Nm
• Tooling: 4-station tool changer; tool Ø x L max. 10 x 110 mm; max tool weight 0.5 kg; tool change ≈ 10 s
• Positioning accuracy: ±0.015 mm (X/Y/Z); repeatability ±0.01 mm
• Motor rating main drive: 1 kW
• Dimensions / Weight: 1.4 m x 0.9 m x 1.8 m / 450 kg
