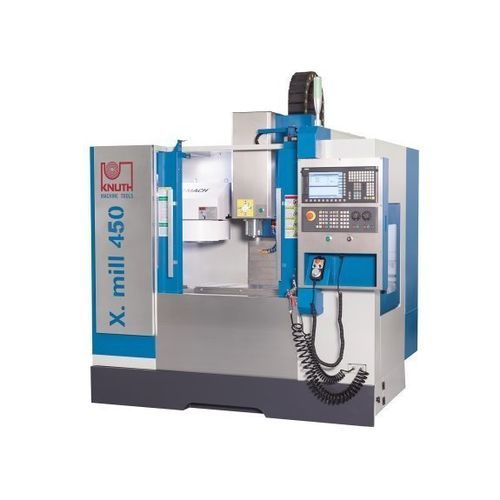

3-axis CNC milling machine X.mill 450

verticalwith fixed tableSK30

Short description
The X.mill 450 is a compact vertical CNC machining centre for precise 3-axis milling in small workshops and lean production cells. It pairs a reduced footprint with a rigid C-frame, belt-driven SK40 spindle and Siemens 828D control for efficient, repeatable production.

Product highlights

• 3-axis vertical CNC machining centre
• Table 700 × 260 mm, 200 kg load
• 12-position carousel tool magazine
• Siemens 828D control (SINUMERIK Operate)

Machine Design

• Grey cast-iron machine body for structural rigidity
• Fully enclosed linear guideways and preloaded ball screws on all axes for high accuracy and low friction
• Wide machine table with 3 T-slots and easy access via large doors

Spindle

• Belt-driven, multiple-bearing spindle with SK40 (ISO 7388-1 / DIN 69871) interface
• Speed range up to 10,000 rpm
• Constant torque: 24 Nm

Tool Changer

• 12-station carousel-type tool changer for flexible production
• Robust horizontal layout able to handle heavier tools (max tool weight 8 kg)

Control

• Siemens 828D with SINUMERIK Operate — graphical ShopMill cycles and standard interfaces (CF, USB, Ethernet)

Equipment & Maintenance

• Electronic handwheel for setup
• Enclosed electrical cabinet with heat exchanger
• Fully enclosed workspace; optional chip extraction and conveyor
• Spray guns for coolant and compressed air; automatic central lubrication

Technical data (tables)

Working area
Table dimensions: 700 mm x 260 mm
Table load capacity: 200 kg
Spindle nose-to-table distance: 80 mm - 500 mm
Spindle center - column: 330 mm
Number of T-slots: 3 positions

Travels
Travel X-axis: 450 mm
Travel Y-axis: 260 mm
Travel Z-axis: 420 mm

Headstock
Spindle speed: 10,000 1/min
Spindle mount: SK 40 ISO 7388-1 (DIN 69871)
Torque, constant: 24 Nm

Feed
Rapid feed: 12,000 mm/min
Work feed: 10,000 mm/min

Tooling
Number of tool stations: 12 positions
Tool Ø: 90 (150) mm
Tool length (max.): 250 mm
Tool weight max.: 8 kg
Tool-change time tool/tool: 8 sec

Accuracies
Repeatability: 0.006 mm
Positioning accuracy: 0.008 mm

Drive capacity
Main drive, continuous load: 3.7/5.5 kW
Total power consumption: 10 kVA

Measures and weights
Overall dimensions (L × W × H): 2.11 m × 1.78 m × 2.25 m
Weight: 1,800 kg

Characteristics / technical specifications

• Model: X.mill 450
• Machine type: C-frame vertical CNC centre, 3-axis
• Control: Siemens 828D (SINUMERIK Operate), supports ShopMill
• Spindle: SK40, up to 10,000 rpm, 24 Nm constant torque
• Travels (X/Y/Z): 450 / 260 / 420 mm
• Table: 700 × 260 mm, 3 T-slots, 200 kg capacity
• Tool magazine: 12-position carousel, max tool Ø 90 (150) mm, max tool length 250 mm, max tool weight 8 kg
• Feeds: rapid 12,000 mm/min, working 10,000 mm/min
• Accuracy: repeatability 0.006 mm, positioning 0.008 mm
• Main drive: 3.7 / 5.5 kW; total consumption 10 kVA
• Overall size & weight: 2.11 m × 1.78 m × 2.25 m; 1,800 kg
