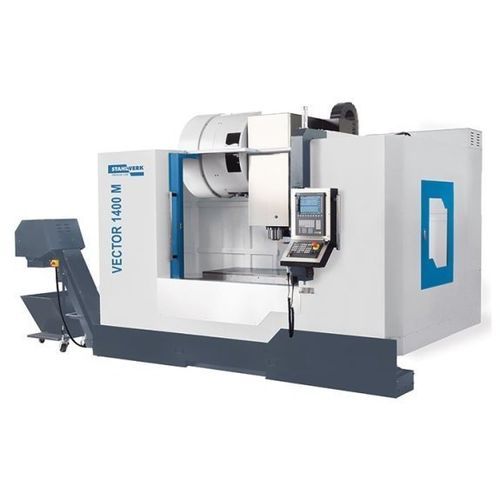

3-axis CNC machining center VECTOR 1400 M Si

verticalSK4024 tools

Product overview
The VECTOR 1300/1400 series is a vertical machining center designed for machining very large and heavy workpieces. A Meehanite cast base with low centre of gravity and premium components provide stable precision for multi-shift production. Extensive accessory and automation options allow configuration to specific production workflows.

Highlights

• Multi-bearing spindle for reduced vibration
• 30-bar spindle coolant for optimized chip evacuation
• Designed for multi-shift industrial operation
• Extensive customization and automation options
• 2-year standard warranty

Machine design

• Extra-wide column base and large guide distances for rigidity during fast, high-precision machining
• Frame engineered using FEM simulations to ensure stability under realistic load conditions
• All axes run on fully enclosed linear roller guideways with precision ball screws driven by dynamic servo motors

Extra-rigidity

• Oversized guideways with additional guide carriages for higher load capacity and torsional stiffness
• Preloaded ball screws with larger bearings for improved efficiency and durability

Spindle

• Main spindle supported on multiple bearings to absorb and dissipate cutting forces
• Design minimizes heat accumulation under load
• Large preloaded bearings ensure radial stability in heavy cutting
• High-temperature lubricants for reliable lubrication and long service life
• Tool clamping on taper and flange contact surfaces for secure retention

Tool changer

• High-performance dual-arm tool changer for maximum utilization of the machining center
• Tool-change time tool/tool around 1.8 s; chip/chip around 3.9 s (dependent on configuration)
• Standard 24-station magazine (expandable/optional)

Handling and accessibility

• Fully enclosed work area with large front door and side openings for access, safety and cleanliness
• Electrical cabinets separated for high and low voltage to reduce heat build-up and noise
• Electronic handwheel for simplified setup
• Automatic central lubrication system covering all lubrication points

CNC equipment and software

• Standard control: Siemens (e.g. SINUMERIK 828D); advanced control options available
• Software functions available: simulation, advanced surface cycles, measurement cycles, DXF reader, dynamic functions depending on configuration

Technical specifications

• Working area: Table dimensions 1.500 mm × 700 mm; Table load capacity 1.500 kg; Max workpiece weight 1.500 kg; Spindle nose to table surface 150 mm – 850 mm; T-slots 6 positions (18 mm × 100 mm)
• Travels: X 1.400 mm; Y 720 mm; Z 700 mm
• Headstock: Spindle speed 10.000 1/min; Spindle mount SK40 (ISO 7388-1 / DIN 69871)
• Rapid feed: 24 m/min
• Feed: Cutting feed up to 10.000 mm/min
• Tooling: Tool stations 24; Max tool Ø×L 80 mm × 300 mm; Tool-change time chip/chip 3.9 s; tool/tool 1.8 s
• Accuracies: Positioning ±0.005 mm; Repeatability ±0.003 mm
• Drive capacity: Main spindle continuous 17 kW; Axis motors X/Y/Z 5.5 kW each
• Control: Siemens
• Dimensions & weight: Weight approx. 9.500 kg; Overall dimensions 3.8 m × 2.6 m × 3.3 m
