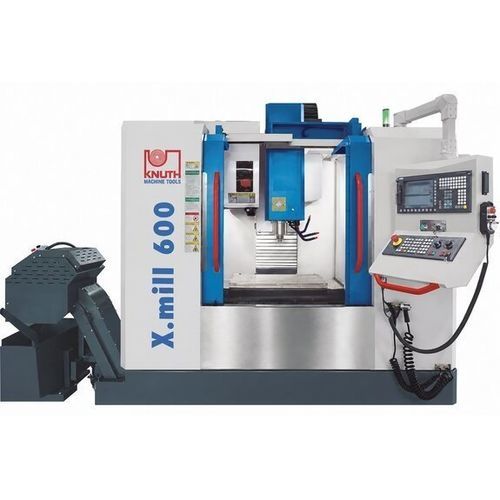

3-axis CNC milling machine X.mill 600

verticalSK4024 tools

Product overview
The X.mill 600 is a vertical machining centre designed for industrial production environments. It features a C‑frame construction, a SK40 spindle and travel ranges suitable for medium-sized workpieces. Configurable with a broad option set, it is adapted to multi-shift manufacturing.

Highlights

• 24-position vertical tool changer with double-arm gripper for fast tool exchanges
• Siemens 828D CNC control (SINUMERIK Operate)
• High-quality components: fully enclosed linear guides and precision ball screws
• Engineered for continuous multi-shift operation and easy maintenance

Design and construction

• C‑frame structure optimized for workshop rigidity and access
• Axes on fully enclosed linear guides and precision ball screws to ensure positioning accuracy and low static friction
• Worktable sized 800 x 500 mm with 400 kg load capacity; X travels from 600 mm (variants up to 1100 mm available)
• Clear workspace layout and optimized control access to reduce setup and changeover times

Main spindle and drives

• Multi-bearing spindle design for reliable absorption and dissipation of machining forces
• Belt-driven spindle unit providing speeds up to 10,000 rpm
• SK40 spindle mount for wide tooling compatibility

Automatic tool changer

• 24-position magazine increases productivity and flexibility
• Vertical layout with double-arm gripper enables quick tool change and compact tool storage
• Robust design supports heavy tool weights

Equipment

• Electronic handwheel for simplified setup
• Electronics housed in a closed control cabinet with heat exchanger for temperature management
• Fully enclosed workspace, easily fitted with extraction
• Manual coolant and air spray guns for cleaning workpieces and workspace
• Automatic central lubrication for reliable supply to all lubrication points

Controller
Siemens 828D CNC with Siemens drives offering intuitive operation and functionality for demanding milling tasks

Technical specifications
Working area
Table dimensions: 800 mm x 500 mm
Table load capacity: 400 kg
Spindle nose-to-table distance: 120 mm - 620 mm
Spindle center to column: 573 mm
Number of T-slots: 5
T-slot (width x spacing): 18 mm x 90 mm

Travels
Travel X-axis: 600 mm (variants up to 1100 mm)
Travel Y-axis: 500 mm
Travel Z-axis: 500 mm

Headstock
Spindle speed: up to 10,000 rpm
Spindle mount: SK40

Rapid feed
Rapid feed X / Y axis: 36,000 mm/min
Rapid feed Z-axis: 24,000 mm/min

Feed
Feed speed X / Y / Z axis (max.): 12,000 mm/min

Tooling
Number of tool stations: 24 positions
Tool size Ø x L (max.): 75 mm x 150 mm

Accuracies
Positioning accuracy X/Y: ±0.004 mm
Repeatability X/Y: ±0.002 mm

Drive capacity
Main drive, continuous load: 7.5 kW

Measures and weights
Overall dimensions (L x W x H): 3 m x 2.25 m x 2.45 m
Weight: 4,000 kg

Standard equipment & selected items (summary)

• Siemens 828D control (SINUMERIK Operate)
• 24-position vertical tool changer with double-arm gripper
• Coolant system, manual coolant spray gun and air gun
• Heat exchanger for electric control cabinet
• Electronic handwheel
• Automatic central lubrication
• Operating manual
