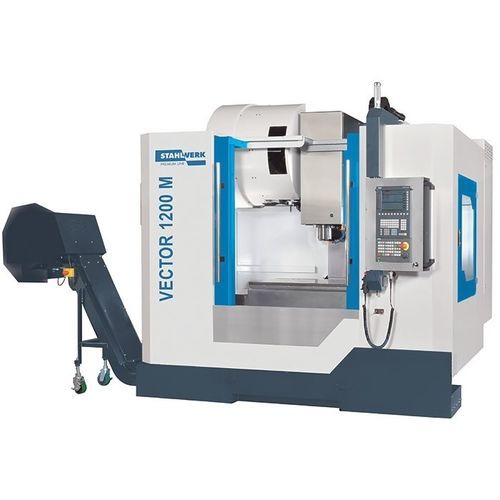

3-axis CNC machining center VECTOR 1200 M SI
verticalSK4024 tools

3-axis CNC machining center - VECTOR 1200 M SI - Knuth Machine Tools - vertical / SK40 / 24 tools
3-axis CNC machining center - VECTOR 1200 M SI - Knuth Machine Tools - vertical / SK40 / 24 tools
3-axis CNC machining center - VECTOR 1200 M SI - Knuth Machine Tools - vertical / SK40 / 24 tools - image - 2
3-axis CNC machining center - VECTOR 1200 M SI - Knuth Machine Tools - vertical / SK40 / 24 tools - image - 3
3-axis CNC machining center - VECTOR 1200 M SI - Knuth Machine Tools - vertical / SK40 / 24 tools - image - 4
3-axis CNC machining center - VECTOR 1200 M SI - Knuth Machine Tools - vertical / SK40 / 24 tools - image - 5
3-axis CNC machining center - VECTOR 1200 M SI - Knuth Machine Tools - vertical / SK40 / 24 tools - image - 6
Add to favorites
Compare this product
Go to the Knuth Machine Tools website for more information

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
SK40
Number of tool stations
24 tools
Other characteristics
high-precision
X travel

1,220 mm
(48.03 in)

Y travel

600 mm
(23.62 in)

Z travel

600 mm
(23.62 in)

Rotational speed

10,000 rpm
(62,832 rad.min-1)

Power

12 kW
(16.32 hp)

Table load capacity

1,200 kg
(2,646 lb)

Tool weight (max)

7 kg
(15.4 lb)

Tool-changing time

3.9 s

Weight

6,500 kg
(14,330.05 lb)

Overall length

3,000 mm
(118.1 in)

Overall width

2,400 mm
(94.5 in)

Overall height

2,930 mm
(115.4 in)

Description

The Vector 1200 series was developed for machining large and heavy workpieces. The heavy machine frame made of Meehanite cast, the robust construction with four guideways on the Y-axis and high-quality components guarantee consistently high cutting performance. You can rely on high precision even in multi-shift operations. A wide range of accessories allows the machines to be expanded into tailor-made complete solutions for specific applications. The series offers automation solutions that enable you to further increase productivity. Spindle on multiple bearings ensures minimal vibrations 30-bar CTS to ensure optimum machining quality Designed for multi-shift operation Many customization and automation possibilities
