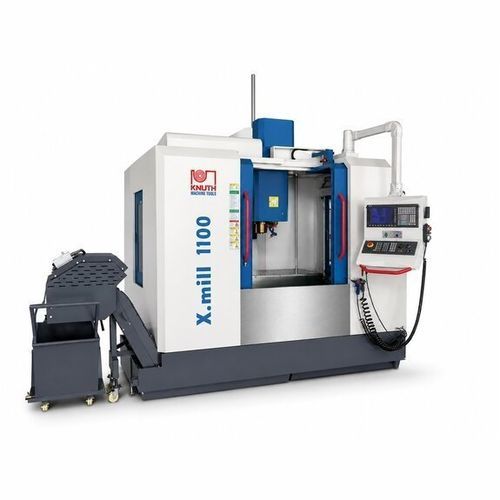

3-axis CNC milling machine X.mill 1100

verticalSK4024 tools

Overview
The X.mill 1100 is a C‑frame vertical machining centre equipped with Siemens SINUMERIK 828D, intended for industrial multi‑shift production. It offers an 1,100 mm X travel, SK40 spindle interface and a 24‑position automatic tool changer for flexible machining cell integration.

Key highlights

• C‑frame vertical machining centre, model X.mill 1100
• Siemens 828D CNC with Siemens drives
• SK40 spindle, up to 10,000 rpm
• 24‑position vertical ATC with double‑arm gripper
• X/Y/Z travels: 1,100 / 600 / 600 mm; table 1,200 x 600 mm, 800 kg

Design and construction

• Rigid C‑frame structure for stable machining and repeatable results
• Fully enclosed linear guides and precision ball screws on all axes for high accuracy
• Worktable sized for varied workpieces; optimized access to reduce setup times
• Engineered for continuous, low‑maintenance multi‑shift operation

Main spindle and drives

• Multi‑bearing spindle arrangement for absorption and dissipation of cutting forces
• Belt‑driven spindle unit with speed range up to 10,000 1/min
• Stable SK40 mounting to support a wide range of tooling

Automatic tool changer

• 24‑position vertical tool changer increases productivity and flexibility
• Double‑arm gripper enables fast tool swaps and compact discarded‑tool storage
• Heavy‑duty construction allows handling of high tool weights

Equipment and auxiliary systems

• Electronic handwheel for precise setup
• Closed control cabinet with heat exchanger for temperature management
• Fully enclosed workspace ready for extraction systems
• Manual spray guns for coolant and compressed air; automatic central lubrication

Controller
Equipped with Siemens SINUMERIK 828D and Siemens drives, providing intuitive SINUMERIK Operate interface and capabilities for demanding milling cycles.

Technical specifications

• Model: X.mill 1100
• Type: Vertical machining centre, C‑frame
• Table: 1,200 x 600 mm, max load 800 kg; T‑slots: 5 x 18 mm x 125 mm
• Travels (X/Y/Z): 1,100 / 600 / 600 mm
• Spindle speed: up to 10,000 1/min; spindle mount: SK40
• Rapid feed X/Y: 24,000 mm/min; Z: 20,000 mm/min
• Feed speed (max): 10,000 mm/min
• Tool magazine: 24 positions; max tool Ø x L: 75 mm x 150 mm
• Positioning accuracy X/Y: ±0.004 mm; repeatability X/Y: ±0.002 mm
• Main drive continuous: 11 kW
• Overall dimensions (L x W x H): 3.95 m x 2.25 m x 3.66 m; Weight: 6,400 kg
