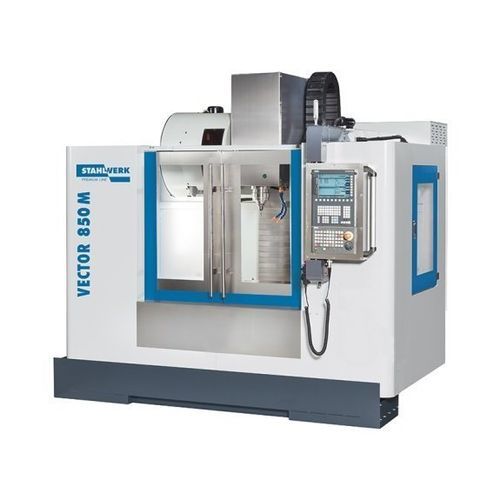

3-axis CNC machining center VECTOR 850 M Si

verticalSK4024 tools

Overview
The VECTOR 850 M SI is a vertical CNC machining center engineered for compact, multi-shift production and complex part machining. Designed with FEM analysis and produced under strict quality control, the machine frame uses Meehanite castings and a delta column for increased stiffness and thermal stability.

Highlights

• Extra-wide Y-shaped Meehanite column for maximum structural stability
• 30-bar coolant-through-spindle (CTS) for improved chip evacuation and tool life
• Dual-arm 24-position automatic tool changer for high flexibility
• Designed for continuous multi-shift operation
• Numerous customization and automation options; 2-year standard warranty

Machine design

• Rigid C-frame construction with low center of gravity and compact footprint
• 30 mm preloaded ball screws and digital drive package for rigid table guidance and high torque
• Linear guides on X, Y and Z axes for high accuracy and low friction (roller-guide variants available)
• Space-saving layout with wide front access doors for easy loading

Spindle

• Multiple-bearing spindle for superior load absorption and dissipation
• Spindle mount: SK 40 ISO 7388-1 (DIN 69871)
• Standard spindle speed: 10,000 1/min; constant torque: 57 Nm
• Spindle bearings: 7012 x 4; drive: belt drive

Tooling

• Tool changer type: Dual-arm
• Tool stations: 24 positions; tool selection: random memory
• Max tool size Ø x L: 80 mm x 300 mm; max tool weight: 7 kg
• Tool-change time tool/tool: 1.8 s; chip/chip: 3.9 s

Control / Software (Siemens SINUMERIK 828D)

• Compact robust control with ShopMill for fast part programming
• ProgramGUIDE and SINUMERIK MDynamics with Advanced Surface for series production and mold work
• Animated Elements, graphical help, 3D simulation and modern data transfer via USB, CF and Ethernet
• Optional measuring cycles, residual material detection and simultaneous recording

Technical Specs (tables)
Working area
Table dimensions — 1.000 mm x 550 mm
Table load capacity — 800 kg
Spindle nose-to-table surface distance — 150 mm - 700 mm
Spindle center - column — 619 mm

Travels
Travel X-axis — 850 mm
Travel Y-axis — 550 mm
Travel Z-axis — 550 mm
Guideway — Roller (variants available)

Headstock
Spindle speed — 10.000 1/min
Spindle mount — SK 40 ISO 7388-1 (DIN 69871)
Torque, constant — 57 Nm
Spindle bearing — 7012 x 4
Spindle drive method — Belt drive

Rapid feed
Rapid feed X-/Y-axis — 36.000 mm/min
Rapid feed Z-axis — 15.000 mm/min

Feed
Work feed — 10.000 mm/min

Tooling (summary)
Tool changer type — Dual-arm
Number of tool stations — 24 positions
Tool selection — Memory random
Tool size Ø x L (max.) — 80 mm x 300 mm
Tool weight max. — 7 kg
Tool-change time tool/tool — 1.8 sec
Tool-change time chip/chip — 3.9 sec

Accuracies
Repeatabilities — ± 0.003 mm (± 0.00012")
Positioning accuracies — ± 0.005 mm (± 0.0002")

Drive capacity
Main drive, continuous load — 9 kW
Total power consumption — 20 kVA
Voltage — 400 V
Mains frequency — 50 Hz

Measures and weights
Overall dimensions (L x W x H) — 2.42 m x 2.20 m x 2.70 m
Weight — 4,300 kg

Additional product details

• Wide opening front doors for easy access and loading/unloading
• Optional spindle upgrades (higher speed or direct drive) and BT40 variants available
• Extensive accessories and probing systems available (Renishaw probes, toolsetters, rotary axis options)

Technical specifications

• Model — VECTOR 850 M SI
• Series / Type — C-frame vertical CNC center (Vector M series)
• X / Y / Z travel — 850 / 550 / 550 mm
• Table dimensions — 1.000 x 550 mm; load — 800 kg
• Tool magazine — Dual-arm, 24 positions
• Standard control — Siemens SINUMERIK 828D (ShopMill)
• Warranty — 2-year standard warranty
