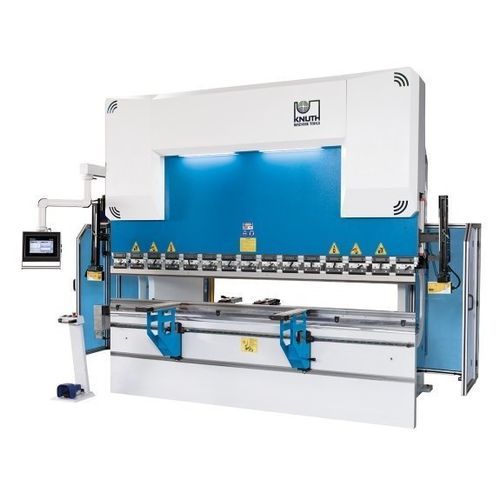

Hydraulic press brake AHK V 30175 CNC

CNC4-axisprecision

Overview
The AHK V 30175 CNC is a hydraulic press brake designed for industrial sheet metal bending, combining a robust machined steel frame with modern CNC control for high-precision production. Equipped with DELEM graphics and modular back gauge options, it adapts to a wide range of bending tasks.

Highlights

• 175 t pressing force, 3.100 mm bending length
• DELEM graphical touchscreen control (DA-53T standard)
• Promecam tool clamping system and hardened, ground tools
• AKAS laser optical safety system and rear light barrier
• Motorised crowning and configurable multi-axis back gauge

Machine frame

• Welded, stress-relieved steel frame machined on high-end CNC centers for superior rigidity and repeatability
• Large prestressable upper beam to minimise deformation under load
• Structural parts designed with large radii to reduce risk of weld cracks
• Guideways, piston bearings and seals sized for optimum vertical load absorption and long service life

Work area

• Generous throat depth and long stroke with narrow table provide clear access for complex bending sequences (Throat depth: 410 mm; Stroke: 265 mm)

Crowning (note)

• Motorised lower crowning ensures uniform bend results across the full bending length when working with thicker sheets (optional on some models)

Hydraulic system

• In-house manufactured and honed hydraulic cylinders and forged steel pistons (hardened, ground, chrome-plated)
• Hydraulic blocks and valves from renowned suppliers for lasting reliability
• Safety valves protect the system against overloads

Back gauge

• Robust, low-maintenance back gauge design with quick-adjust fingers accessible from the machine front
• Options for multi-axis X/R/Z back gauge for extended lengths

Front support arms

• Rigid support arms on linear guides with positive clamping and rack positioning for fast height adjustment
• Industrial brushes protect sheet surfaces and simplify handling

Bending tools

• Promecam (European) tool holders for broad tooling compatibility
• Upper and lower tools hardened and ground for precise setup; segmented upper tools available

Safety and productivity

• AKAS laser safety system monitors the tool area without restricting functionality
• Safety concept compliant with current CE standards
• Rear light curtain and robust side guards secure the working area

Standard equipment (selection)

• DELEM DA-53T 4-axis touch CNC control
• X-axis back gauge with linear guide and ball screw
• Motorised crowning, quick clamping upper tool
• AKAS laser-optical safety system and rear light barrier
• European tool clamping system; EUROPEAN TYPE upper tool segmented 835 mm
• Foot pedal with emergency stop; 2 movable front support arms
• ECO mode energy-saving function; operating manual

Optional equipment (selection)

• Multi-axis back gauge systems (X, R, Z1, Z2) for longer lengths up to 3.700 mm
• Advanced DELEM controls (DA-58, DA-66T, DA-69T) for multi-axis applications
• Air conditioning for electrical cabinet; energy monitoring options (PressMax DRM EcoPower)
• Additional back gauge fingers/support arms; upper tool height upgrades

Technical specifications

• Model: AHK V 30175 CNC
• Pressing force: 175 t
• Bending length: 3.100 mm
• Distance between columns: 2.600 mm
• Throat depth: 410 mm
• Stroke: 265 mm
• Clear opening: 480 mm
• Table width: 110 mm
• Table height: 900 mm
• X-axis travel: 750 mm
• Bending speed: 9 mm/s
• Rapid feed: 160 mm/s
• Return speed: 120 mm/s
• X-axis feed speed: 600 mm/s
• Main drive power: 18,5 kW
• Hydraulic tank volume: 230 l
• Overall dimensions (L x W x H): 4,1 m x 2,55 m x 2,82 m
• Weight: 10.500 kg
