Hydraulic press brake AHK M 1230

NCprecision

Product description

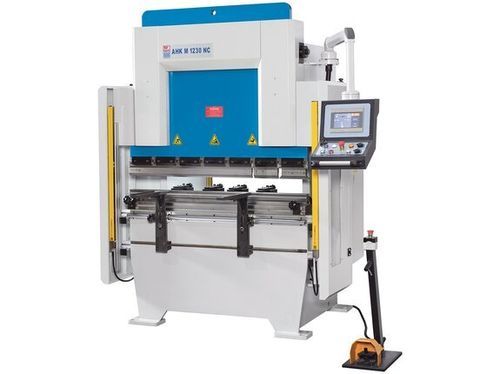

The AHK M 1230 NC is a hydraulic press brake designed as an economical NC alternative to full CNC press brakes. It combines a low‑stress welded steel frame, motorized backgauge axes and a touchscreen NC for direct positioning or stored bending programs, making it suitable for repetitive production of parts and profiles.

Highlights

• Stress‑relieved welded steel construction
• Direct bend‑angle feedback
• NC control with touchscreen HMI
• Back gauge with motorized X and R axes
• European‑style upper/lower tool interface (Promecam)

Technical specs (table)
Working area

• Pressure force: 30 t
• Bending length: 1,250 mm
• Distance between columns: 1,010 mm
• Throat depth: 255 mm
• Stroke: 150 mm
• Clear opening: 265 mm
• Table width: 130 mm

Travels

• X‑axis travel: 500 mm
• R‑axis travel: 140 mm

Feed

• Bending speed: 10 mm/s
• Rapid feed: 120 mm/s
• Return speed: 70 mm/s

Drive capacity

• Main drive motor: 3 kW
• X‑axis motor: 0.55 kW
• R‑axis motor: 0.25 kW

Measures and weights

• Hydraulic tank volume: 90 l
• Overall dimensions (L x W x H): 1.76 m x 1.38 m x 2.14 m
• Weight: 1,700 kg

Product Details

• Machine frame and upper tool: Precision, stress‑relieved welded steel frame with a rigid bending beam and hydraulic cylinders on both sides; large throat and narrow table to facilitate complex bending sequences.
• Hydraulics: Hydraulic unit with tank located in the upper machine frame for compact layout and increased rigidity; torsion shaft links both cylinder depth stops for precise upper beam positioning.
• Front support arms: Height‑adjustable, robust support arms with stop ridge to assist workpiece alignment.
• Bending tools and clamping: Promecam tool holders allow wide tool selection; manual quick‑action clamping reduces tool change time; set includes multiple bending dies.
• Safety and productivity: Safety concept aligned with current CE requirements; protective light curtains around the workspace.
• Control: Touchscreen NC HMI for direct input; manual, semi‑automatic and automatic modes; motorized axis positioning in manual mode; storage for up to 500 data sets; external program import/export via USB or network; axis positions retained when display is off.

Back Gauge

• NC‑controlled back gauge with linear guides and large preloaded ball screws for stability and low maintenance.
• Motorized R‑axis for precise stop‑height setup and lateral positioning of back gauge fingers on smooth linear guides.
