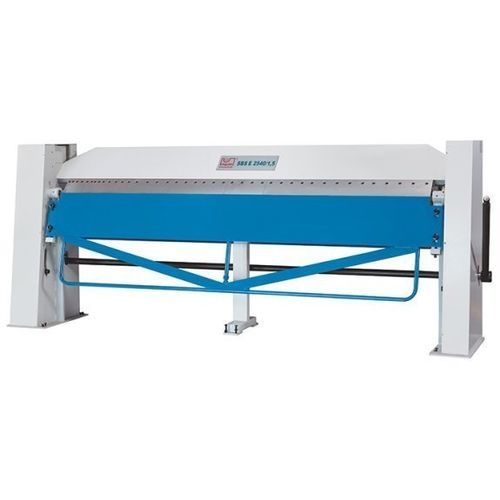

Sheet metal folding machine SBS E 2540/1,5

manuallarge

Description
Manual folding machines of the SBS E series feature a heavy, robust construction designed for bending long metal sheets up to 3.000 mm. The series is suitable for large bending lengths and, with the adjustable angle stop and segmented upper tool, can be used for small-batch angular production. Built-in manual bending compensation and simple operation support demanding sheet metal processing tasks.

Highlights

• Large bending lengths
• Segmented upper tool for extended bending options
• Built-in manual bending compensation
• Adjustable angle stop for repeatable angles
• Easy manual operation

Product details
The series offers a rugged, very robust design while remaining easy to handle and precise in operation. All models include a hardened, segmented male die; segments are removable individually to enable bending all sides of basins and complex parts. The adjustable angle stop facilitates production of small angular batches. A manually adjustable rear gauge is available as an option.

Standard equipment / options (excerpt)

• Segmented sharp-nose upper die
• Operator manual

Technical specifications

• Model: SBS E 2540/1,5
• Working area: Working length: 2.540 mm; Plate thickness (max.) - 400 N/mm²: 1,5 mm; Working height: 920 mm
• Male die: Stroke: 120 mm
• Bending die: Bending angle (max.): 135°; Adjustment range for A axis: 15 mm
• Dimensions and weight: Overall dimensions (L x W x H): 3,32 m x 0,72 m x 1,5 m; Weight: 1.250 kg
