Hydraulic shear KHT V 4016 CNC

sheet metalguillotineCNC

Product description

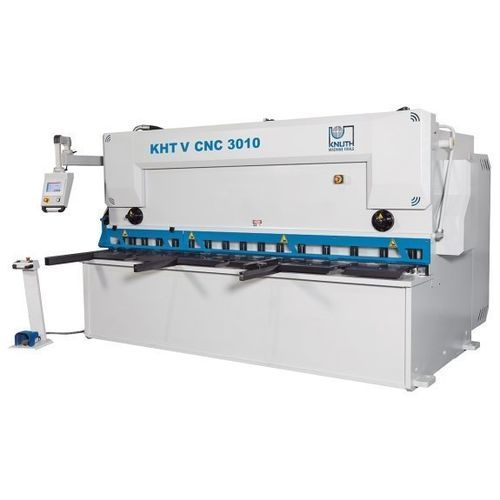

The KHT V 4016 CNC hydraulic guillotine shears are designed for industrial plate cutting with a guided cutter bar and adjustable cutting angle to minimise workpiece twist and reduce rework. The touchscreen control automatically positions cutting gap, cutting angle and cutting length for consistent results. Standard blades are suitable for stainless steel and a robust back gauge supports accurate part positioning. Optional accessories extend machine versatility.

Highlights

• Cybelec Touch 8 G touchscreen control
• Controlled back gauge with preloaded ball screw
• Controlled kerf (cutting gap) adjustment
• Controlled cutting angle adjustment
• Upper and lower knives suitable for stainless steel

Machine frame

• Very rigid, heavy welded frame stress-relieved after welding
• Frame machined on 5-axis milling centres in one setup for precision and durability
• Components subject to tensile loads designed with large radii to avoid cracking
• Table with lower cutter mount and cutter bar engineered for minimal torsion and optimal load distribution
• Painted and dried in modern plant with two coats (each ≥ 60 μm)

Material support

• Large work table with roller balls and rigid lateral angular stop for easy handling and accurate plate alignment
• Long, sturdy support arms to secure large plates

Hydraulics

• Polished pistons on both hydraulic cylinders with 2 μm surface finish for long seal life
• Cylinder bodies forged from high-strength SAE 1040 material
• Reliable, low-maintenance, service-friendly hydraulic system
• Hydraulically regulated hold-downs ensure steady fixation of the sheet close to the cut line

Back gauge and control

• Length, thickness and material strength entered in the programmable control; system selects kerf, cutting angle and length automatically
• Robust back gauge system for heavy production use
• Linear guides and preloaded ball screws mounted in protective enclosure

Equipment

• Electric components by renowned manufacturers for high availability
• Upper knife: 2 cutting edges; lower knife: 4 cutting edges
• Operation via foot pedal with emergency-stop switch; pedal position flexible
• Eco mode for reduced energy consumption

Safety

• Safety features designed to comply with current CE regulations
• Rear-mounted light barrier protects the work area

Technical specifications
Working length: 4.100 mm
Throat depth: 150 mm
Cutting angle: 0.5° – 2° (adjustable)
Strokes per minute: 5 H/min – 19 H/min
Hold-down positions: 20 (capacity 32 t)
Table size: 4.430 mm x 650 mm x 950 mm
Back gauge rear stop travel: 1.000 mm
Back gauge X-axis feed speed: 9.000 mm/min
Support arms: 3 positions, 1.000 mm length
Max plate thickness (450 N/mm²): 16 mm
Max plate thickness (700 N/mm²): 10 mm
Main drive motor: 37 kW
Hydraulic tank volume: 400 l
Overall dimensions (L x W x H): 5,55 m x 3,7 m x 2,7 m
Weight: 22.000 kg

Characteristics / Model

• Model: KHT V 4016 CNC
• Series: KHT V CNC
• Standard controller: Cybelec Touch 8 G
• Standard knives: upper & lower knives suitable for stainless steel (upper: 2 edges; lower: 4 edges)
