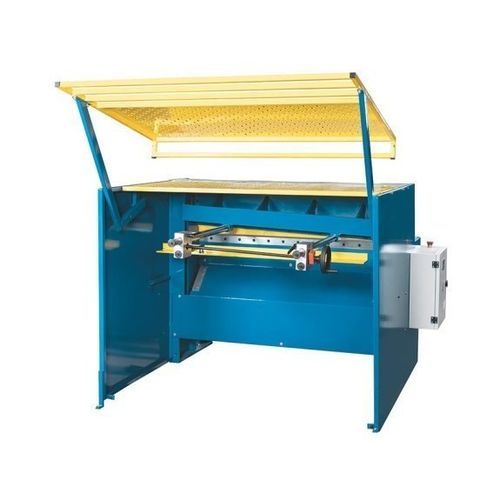

Electric shear KMT B 1253

sheet metalguillotineautomatic

Overview
The KMT B 1253 is a motorized guillotine shear engineered for cutting long or thick sheet metal in industrial workshops, repair shops and single-piece production. It features a rigid welded steel frame, guided cutter bars to minimise workpiece twist and a manual back gauge for precise positioning.

Highlights

• Rigid fully welded steel construction
• Long rugged support arms (600 mm)
• Mobile control unit with foot switch
• Manual back gauge with counter (rear operation)

Machine frame and drive

• Sturdy welded steel frame for industrial duty
• Rubber-coated hold-down for automatic plate fixation
• Small knife angle to ensure cutting accuracy

Material support

• Rigid lateral angle stop simplifies plate alignment to the cut line
• Support arms secure large plates on the work table

Operation and ergonomics

• Illuminated cut line ensures clear visibility of the marking
• Mobile control unit with foot switch leaves both hands free for handling

Back gauge

• Manual back gauge with counter for precise positioning
• Robust, rigid construction built for daily workshop use
• Work area at the back gauge is covered with safety panels

Technical specifications
Working area
Working length: 1,250 mm
Cutting angle: 2°
Strokes per minute (automatic mode): 30 H/min
Knife length: 1,350 mm
Work table height: 830 mm
Support arms: 600 mm (2 positions)

Back Gauge
Rear stop: 630 mm

Cutting capacities
Plate thickness (max.) - 450 N/mm²: 0.8–3 mm

Drive capacity
Main drive motor rating: 3 kW

Measures and weights
Overall dimensions (L×W×H): 1.69 m × 1.48 m × 1.10 m
Weight: 850 kg

Features / specifications

• Model: KMT B 1253
• Type: Motorized guillotine shear
• Working length: 1,250 mm
• Knife length: 1,350 mm
• Cutting angle: 2°
• Strokes per minute (automatic): 30 H/min
• Work table height: 830 mm
• Support arms: 600 mm (2 positions)
• Rear stop: 630 mm (manual, with counter)
• Cutting capacity (450 N/mm²): 0.8–3 mm
• Main drive motor rating: 3 kW
• Dimensions (L×W×H): 1.69 m × 1.48 m × 1.10 m
• Weight: 850 kg
• Ergonomics: Mobile control unit with foot switch, illuminated cut line
• Safety: Work area protected by safety panels
