Hydraulic press brake AHK V 20060 CNC

CNCprecision

Presentation

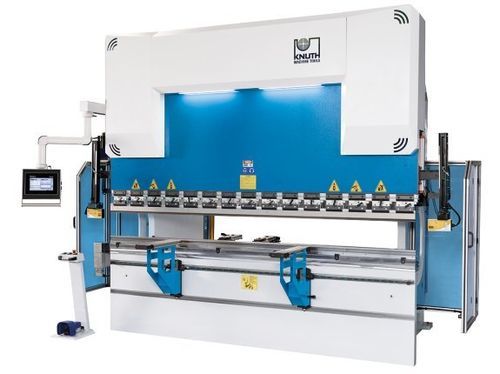

The AHK V 20060 CNC press brake series meets modern European standards for industrial press brakes. Developed with advanced design technology and produced on modern production lines, these machines deliver precision, reliability and repeatability. The series is equipped with a DELEM graphical touchscreen CNC control for efficient programming and full process control. Multiple backgauge and accessory options allow adaptation to varied production requirements.

Key features

• High machining quality
• Premium hydraulic and electronic components
• DELEM touchscreen CNC control
• Laser optical safety system (AKAS) at the tool
• Time-saving detailed solutions for production

Machine construction and details
Machine frame

• Certified quality steel construction for stability and accuracy
• Welded structures stress-relieved and machined on CNC centres
• Load-bearing parts designed with large radii to avoid weld cracks
• Heavily dimensioned, preloaded upper beam to minimise deformation
• Measurement-system supports designed to compensate deviations under full load
• Guides, bearings and seals sized for long lifetime

Work area

• Large overhang, long stroke and narrow table to accommodate complex bending sequences

Table crowning (option)

• Motorised crowning on lower table (standard on most versions): ensures precise bending results over full length for thick plates

Hydraulic system

• Custom-designed hydraulic cylinders manufactured and honed in-house
• Forged steel pistons, hardened, ground and chromed
• Hydraulic blocks and valves from renowned manufacturers for long-term reliability
• Safety valves to protect the system in case of overload

Backgauge

• Robust, low-maintenance backgauge design
• Backgauge fingers adjustable quickly from the front using a safety tool

Front support arms

• Stable support arms running on linear guides and lockable in position
• Rack engagement for fast vertical positioning
• Industrial brushes for sheet protection

Bending tools

• European Promecam-style toolholder allowing wide tool selection
• Tools hardened and ground for precise setup

Safety and productivity

• AKAS laser safety system monitors tool area without limiting functionality
• Safety concept compliant with current CE directives
• Rear light curtain and robust side guards to secure the working area

Standard control (example)
DELEM DA-53T touchscreen CNC control:

• Up to 4-axis CNC control (Y1, Y2 + 2 auxiliary axes), 10.1" colour multitouch TFT
• Hotkey touch navigation and graphical interface for easy programming
• Machine control functions: Y1-Y2, X, R-axis and crowning; option to configure second backgauge axis as Z
• USB port for backup/restore of parts and tools
• Supports servo and frequency drive; advanced Y-axis control algorithms
• Options: TandemLink, offline software Profile-53TL

Standard equipment (examples)

• DELEM DA-53T 2D CNC control
• Backgauge for X-axis with linear guides and preloaded ball screws
• Motorised crowning (depending on version)
• Quick-action male punch clamping
• AKAS laser optical safety system
• Rear light curtain
• European tool mounting
• Compatible male/female European dies
• Foot pedal with emergency stop switch
• Two movable front support arms
• Height-adjustable backgauge fingers
• ECO mode for energy saving
• User manual

Optional equipment (examples)

• Backgauge systems for X and R axes
• X-axis backgauge extensions
• Additional backgauge fingers
• Extra support arm
• Air conditioning for electrical cabinet
• Higher capacities and alternative DELEM controls (DA58/DA66T/DA69T)
• PressMax DRM EcoPower accessories (by tonnage)

Technical specifications

• Bending capacity: 60 t
• Bending length: 2,100 mm
• Distance between frames: 1,600 mm
• Overhang: 310 mm
• Stroke: 210 mm
• Opening: 425 mm
• Table width: 110 mm
• Table height: 900 mm
• X-axis travel: 750 mm
• Bending speed: 10 mm/s
• Rapid approach: 190 mm/s
• Return speed: 120 mm/s
• X-axis feed speed: 600 mm/s
• Main drive power: 7.5 kW
• Hydraulic tank volume: 140 l
• Dimensions (L x W x H): 3.1 m x 2.5 m x 2.52 m
• Weight: 5,400 kg
