Hydraulic press brake AHK V 40320 CNC

CNCprecision

Overview

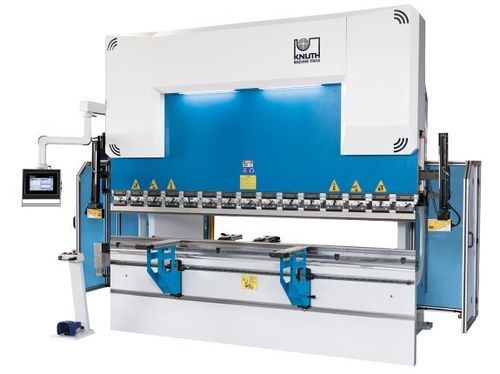

The AHK V 40320 CNC hydraulic press brake is designed for heavy-duty industrial bending in compliance with European standards. Fitted with a DELEM graphical touchscreen (DA-53T and options), it enables efficient CNC programming and full control of the bending cycle. Flexible backgauge and accessory options allow configuration to diverse production requirements.

Highlights

• High-precision machined steel frame and hardened tooling compatibility
• Premium hydraulic and electronic components for long-term reliability
• DELEM graphical touchscreen control for multi-axis programming
• AKAS laser optical safety at the tool and rear light curtain
• Time-saving detailing solutions and ECO energy-saving mode

Machine frame

• Certified-quality steel frame, welded and stress-relieved, machined on high-end CNC centers
• Large radii on tension-loaded parts to reduce welding crack risk
• Prestressable top beam minimizes deformation under load
• Measuring system holder compensates for deformation to maintain precision

Work Area

• Large throat, long stroke and narrow table provide space for complex bending sequences

Crowning (optional)

• Motorized lower crowning (optional) ensures uniform bending results across the full bending length on thicker sheets

Hydraulic system

• Custom-designed hydraulic cylinders manufactured and honed in-house
• Forged-steel pistons hardened, ground and chrome-plated
• Hydraulic blocks and valves from reputable manufacturers; safety valves protect against overload

Back Gauge

• Robust, low-maintenance design with easily adjustable backgauge fingers from the machine front

Front Support Arms

• Rigid support arms on linear guides, clampable at desired positions
• Rack system for fast vertical positioning; industrial brushes protect sheet surfaces

Bending Tools

• Promecam (European) tool clamping system for broad tool selection
• Hardened and ground tools for precise setup

Safety and Productivity

• AKAS laser safety system monitors tool area without limiting functionality
• Safety concept in line with current CE standards
• Rear light curtain and robust side guards secure the working area

Standard Equipment

• Delem DA-53T 2D touchscreen control (up to 4 axes)
• X-axis backgauge with linear guide and ball screw
• Motorised crowning
• Quick-clamping upper tool (European type)
• AKAS laser-optical safety system and rear light barrier
• Foot pedal with emergency stop, 2 movable front support arms, 2 height-adjustable backgauge fingers
• ECO energy-saving mode and operating manual

Technical specifications

• Pressure force: 320 t
• Bending length: 4,100 mm
• Distance between columns: 3,600 mm
• Throat depth: 410 mm
• Stroke: 265 mm
• Clear opening: 480 mm
• Table width: 154 mm
• Table height: 970 mm
• X-axis travel: 750 mm
• Bending speed: 9 mm/s
• Rapid feed: 150 mm/s
• Return speed: 130 mm/s
• X-axis feed speed: 600 mm/s
• Main drive motor: 30 kW
• Hydraulic tank volume: 350 l
• Overall dimensions (L x W x H): 5.3 m x 2.9 m x 3 m
• Weight: 18,500 kg

Remarks

• The machine can be configured with additional backgauge axes, advanced Delem controls (DA58/DA66T/DA69T), extended tools and automation options to meet specific production needs.
