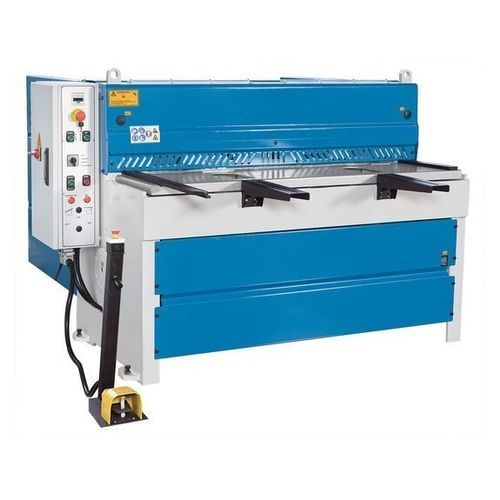

Electric shear KMT M 1303

sheet metalguillotinemotorized

Product description
The KMT M series features a solid construction and is of high quality. These modern plate shears are equipped with a powerful drive motor, and a straight cutter angle ensures minimum workpiece torsion during cutting. The high-precision back gauge is positioned manually.

Highlights

• Solid steel weldment with sliding block guide
• Cutters for stainless steel cutting are included
• Reversible cutters with multiple cutting surfaces
• Manual back gauge with travel display
• Work area secured by light curtain

Product details
Machine Body and Drive System

• The machine frame is made of a very rigid, solid steel weldment and the cutter bar is sliding-block guided
• The high-precision guide ensures clean cuts and special cutters for machining stainless steel plates are included
• The upper cutters are reversible for use of both sides, and the lower cutters feature 4 cutting edges
• A rigid, continuous hold-down fixes the sheet metal plate right in front of the cut line

Material Support

• The rigid side angle stop simplifies alignment of the plate to the cut line
• Rugged support arms ensure a strong hold of large plates
• A wide support table simplifies workpiece handling

Ergonomic Design

• The bright LED illumination of the cut line creates a clearly visible shadow on the marked line
• The smart machine enclosure design allows vertical view from the top for exact workpiece alignment
• An integrated cut counter keeps the user up to date
• All lubrication points and adjustment screws are easily accessible to simplify regular maintenance

Rear stop

• The back gauge is positioned manually via a hand wheel
• An analog linear scale makes exact positioning easy and reduces down-times
• The easy accessible work area at the back gauge is secured by light curtain

Equipment

• The mobile foot switch gives the operator added flexibility and both hands are free for handling the workpiece
• High-quality electric components ensure reliable operation and maximum availability
• The full machine enclosure provides maximum safety, features a practical design and is precision machined

Technical specifications (tabular)
Working area
Working length: 1.360 mm
Cutting angle: 2 deg
Work table height: 810 mm
Work table depth: 390 mm
Number of support arms: 2 positions
Support arms: 450 mm
Strokes per minute: 35 H/min

Back Gauge
Rear stop: 750 mm

Cutting Capacities
Plate thickness (min.) - 450 N/mm²: 0,25 mm
Plate thickness (max.) - 450 N/mm²: 3 mm
Plate thickness(max.) - 700 N/mm²: 1,5 mm

Drive capacity
Motor rating main drive: 3 kW

Measures and weights
Overall dimensions (length x width x height): 1,92 m x 2,1 m x 1,26 m
Weight: 1.250 kg

Specifications

• Model: KMT M 1303
• Working length: 1.360 mm
• Cutting angle: 2°
• Work table height: 810 mm
• Work table depth: 390 mm
• Support arms: 2 positions, 450 mm
• Strokes per minute: 35 H/min
• Rear stop (back gauge): 750 mm (manual)
• Cutting capacities: up to 3 mm @ 450 N/mm²; up to 1,5 mm @ 700 N/mm²; min 0,25 mm @ 450 N/mm²
• Motor rating (main drive): 3 kW
• Overall dimensions: 1,92 m x 2,1 m x 1,26 m
• Weight: 1.250 kg
