Electric shear KMT M 2003

sheet metalguillotinemotorized

Overview

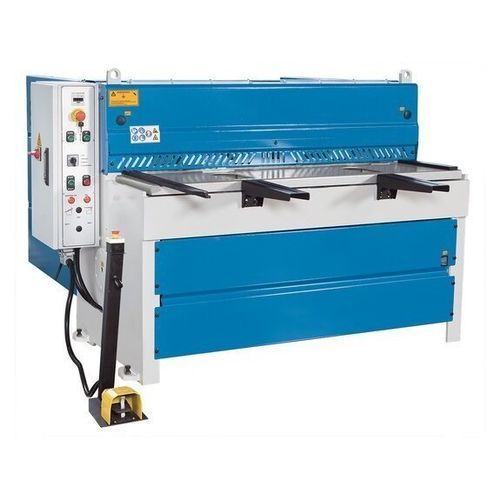

The KMT M 2003 is a motorized plate guillotine shear designed for industrial sheet metal cutting with a sliding-block guide and a manually positioned back gauge.

Highlights

• Solid welded steel frame with sliding-block guide
• Standard cutters for stainless steel
• Reversible upper cutters and multi-edge lower cutters
• Manual back gauge with travel display (750 mm)
• Work area protected by light curtain

Product Details
Machine Body and Drive System

• Very rigid, fully welded steel frame with sliding-block guided cutter bar for precise, clean cuts
• Special cutters for stainless steel included
• Upper cutters reversible; lower cutters with four cutting edges
• Continuous hold-down secures sheet directly in front of the cut line

Material Support

• Rigid side angle stop for accurate alignment to the cut line
• Robust support arms (2 positions, 450 mm) for secure handling of large plates
• Wide support table simplifies workpiece handling

Ergonomic Design

• Bright LED cut-line illumination creates a visible shadow on the marked line
• Machine enclosure allows vertical top view for precise alignment
• Integrated cut counter keeps track of cycles
• Lubrication points and adjustment screws are easily accessible for maintenance

Rear stop / Back Gauge

• Back gauge positioned manually via hand wheel
• Analog linear scale for accurate positioning and reduced downtime
• Rear work area accessible and secured by light curtain

Standard Equipment

• 750 mm manual back gauge
• Cutting unit counter
• Cutting line illumination and shadow light
• Finger protection cages
• Rear safety covers with photocell (light curtain)
• Bottom blade with 2 cutting sides and upper blade with 4 cutting sides
• Foot switch with emergency stop
• Squaring arm with T-slot, stopper and ruler
• Front sheet holding arms (solid rectangular type)
• Operating manual

Optional Equipment

• Return-to-rear pneumatic sheet support system
• NC back gauge control (750 mm BRL)
• NC back gauge control (1000 mm BRL)
• Additional blade set for 2,000 mm cutting length
• 0–180° angular shearing device

Technical specifications (tables)
Working area
Working length: 2,060 mm
Cutting angle: 1.3°
Work table height: 810 mm
Work table depth: 390 mm
Number of support arms: 2 positions
Support arms length: 450 mm
Strokes per minute: 35 H/min

Back Gauge
Rear stop: 750 mm

Cutting Capacities
Plate thickness (min.) - 450 N/mm²: 0.25 mm
Plate thickness (max.) - 450 N/mm²: 3 mm
Plate thickness (max.) - 700 N/mm²: 1.5 mm

Drive capacity
Main drive motor: 4 kW

Dimensions and weight
Overall dimensions (L x W x H): 2.65 m x 2.10 m x 1.26 m
Weight: 1,750 kg

Technical data / specifications

• Model: KMT M 2003
• Working length: 2,060 mm
• Cutting angle: 1.3°
• Work table height: 810 mm
• Work table depth: 390 mm
• Support arms: 2 positions, 450 mm
• Strokes: 35 H/min
• Back gauge travel: 750 mm (manual hand wheel with analog scale)
• Cutting capacity (450 N/mm²): 0.25–3 mm
• Cutting capacity (700 N/mm²): up to 1.5 mm
• Main drive motor: 4 kW
• Overall dimensions: 2.65 m x 2.10 m x 1.26 m
• Weight: 1,750 kg
• Safety & operation: light curtain protected work area, foot switch with emergency stop, full machine enclosure, LED cut-line illumination
