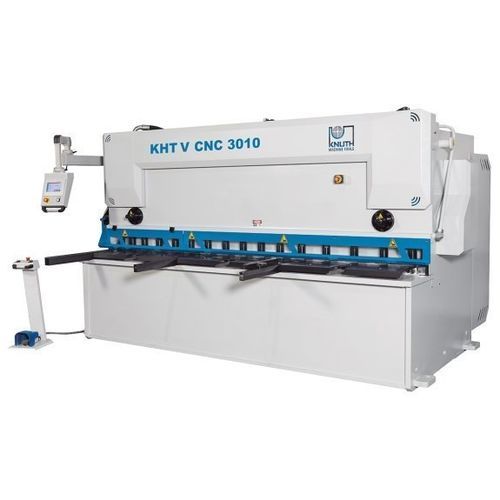

Hydraulic shear KHT V 3006 CNC

sheet metalguillotineCNC

Product overview
The KNUTH KHT V 3006 CNC hydraulic guillotine shear is engineered for accurate, productive sheet metal cutting in industrial environments. A guide-driven cutter bar with adjustable cutting angle minimizes distortion and reduces rework. The touchscreen CNC control automatically positions cutting gap, angle and length. Standard blades suit stainless steel; optional accessories expand machine capability.

Highlights

• Cybelec Touch 8 touchscreen CNC control
• Motorized back gauge with preloaded ball screw
• CNC-controlled cutting gap adjustment
• CNC-controlled cutting angle adjustment
• Upper and lower knives suitable for stainless steel

Machine frame

• Rigid, heavy welded frame machined on a modern 5-axis milling machine in one setup for high accuracy and extended life
• Structural parts designed with large radii to eliminate crack initiation
• Table with lower cutter mount and cutter bar engineered for minimal torsion and optimal load distribution
• Durable two-coat paint finish (minimum 60 µm per coat) applied in a modern paint/dry system

Material support and handling

• Large work table with roller balls and rigid lateral angular stop for safe plate alignment
• Long, sturdy support arms to hold large plates securely

Hydraulics

• Polished pistons (≈2 µm surface) and forged SAE 1040 cylinder bodies for long seal life
• Reliable, low-maintenance hydraulic system designed for easy service
• Hydraulically regulated hold-downs secure the sheet close to the cut line during cutting

Back gauge and control

• User inputs length, thickness and material strength; control automatically sets cutting gap, angle and length
• Robust back gauge system with protected linear guides and preloaded ball screws for heavy production
• Shadow graph / display of cut line for fast setup

Equipment

• Electrical components from reputable manufacturers for high availability
• Upper knife with 2 cutting edges and lower knife with 4 cutting edges
• Foot pedal with emergency stop; pedal can be positioned as required
• Energy-saving ECO mode for reduced consumption
• Material support table with rollers, support arms and lateral stop included

Safety

• Safety concept compliant with current CE regulations
• Rear-mounted light barrier protects the work area

Technical specifications

• Brand: KNUTH
• Model: KHT V 3006 CNC
• Working length: 3,050 mm
• Throat depth: 150 mm
• Cutting angle: 0.5° – 2° (adjustable)
• Strokes per minute: 12 – 20 H/min
• Hold-down positions: 13
• Hold-down capacity: 20 t
• Table size: 3,300 mm × 500 mm × 830 mm
• Back gauge rear stop: 1,000 mm
• Back gauge feed speed (X): 9,000 mm/min
• Front support arms: 2 positions, length 1,000 mm
• Max. plate thickness (450 N/mm²): 6 mm
• Max. plate thickness (700 N/mm²): 4 mm
• Main drive motor: 11 kW
• Hydraulic tank volume: 140 l
• Overall dimensions (L × W × H): 4.1 m × 3.65 m × 1.9 m
• Weight: 7,800 kg
