Hydraulic press brake AHK V 30400 CNC

CNCprecision

Overview

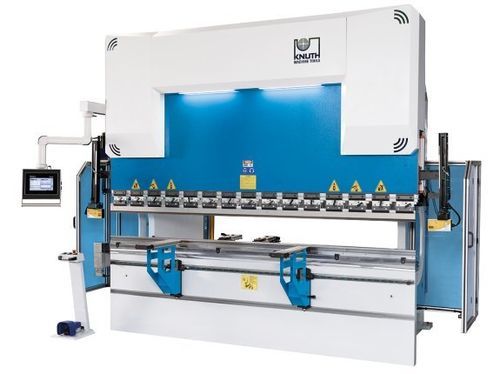

The AHK V 30400 CNC is a 400 t CNC press brake designed for industrial bending operations to European standards. Delivered with a DELEM graphical touchscreen for fast CNC programming and process control, the machine supports multiple back gauge configurations and modular options to fit production needs.

Highlights

• 400 t pressing capacity, 3.100 mm bending length
• DELEM DA-53T graphical touchscreen (standard)
• Promecam European tool clamping system
• AKAS laser-optical safety at the tool
• Motorised crowning (standard on this model)

Working area
Press force: 400 t
Brake length: 3.100 mm
Distance between columns: 2.500 mm
Throat depth: 510 mm
Stroke: 310 mm
Clear opening: 525 mm
Table width: 154 mm
Table height: 1.000 mm

Travels
Travel in X-axis: 750 mm

Feed
Bending speed: 8 mm/s
Rapid feed: 120 mm/s
Return speed: 130 mm/s
Feed speed X-axis: 600 mm/s

Drive capacity
Motor rating main drive: 37 kW

Measures and weights
Hydraulic tank volume: 350 l
Overall dimensions (L x W x H): 4,3 m x 2,95 m x 3,2 m
Weight: 20.000 kg

Product details

• Machine frame: Steel frame from certified raw material; welded, stress-relieved construction; all mounting surfaces machined on CNC centres; prestressable top beam to reduce deformation; measurement-system mounts compensate deformation; guideways, bearings and seals sized for optimal vertical load absorption.
• Work area: Large throat, long stroke and narrow table enable complex bending sequences and improved sheet handling.
• Crowning: Motorised lower crowning (standard) for consistent bending results across the full length, beneficial for thicker sheets.
• Hydraulic system: Custom-designed cylinders honed in-house; forged, hardened, ground and chrome-plated pistons; hydraulic blocks and valves from reputable manufacturers; safety valves to protect against overload.
• Back gauge: Robust, low-maintenance design; back gauge fingers adjustable quickly from the machine front for reduced setup times.
• Front support arms: Rigid support arms on linear guides, lockable in position; rack adjustment for fast vertical positioning; industrial brushes to protect sheet surfaces.
• Bending tools: Promecam tool mounts for wide tool selection; hardened and ground tools for precise setup.
• Safety and productivity: AKAS laser safety monitors the tool area without limiting functionality; CE-compliant safety concept with rear light curtain and robust side guards.

Standard Equipment

• DELEM DA-53T 2D touch control (4-axis touchscreen)
• X-axis backgauge with linear guide and recirculating ball screw
• Motorised crowning
• Quick clamping upper tool
• AKAS laser-optical safety system at the tool
• Rear light barrier
• European tool clamping system (Promecam)
• EUROPEAN TYPE upper tool (835 mm segmented)
• EUROPEAN TYPE bottom tool 4V H: 60x60 mm
• Foot pedal with emergency stop
• 2 front support arms (movable)
• 2 height-adjustable backgauge fingers
• ECO mode energy-saving function
• Operating manual

Optional Equipment (examples)

• Back gauge system for X- and R-axis
• Rear stop X-axis extension
• Additional backgauge finger
• Additional support arm
• Air conditioning for electrical cabinet
• DELEM DA58 2D TX, DELEM DA66T 3D or DA69T 3D upgrades
• X-, R-, Z1-, Z2-axis back gauge for larger lengths
• Upgrade upper tool height from H = 67.6 mm to H = 105 mm (for 3.100 mm)

Technical specifications

• Model: AHK V 30400 CNC
• Machine type: Press brake (CNC-controlled)
• Control: DELEM DA-53T touchscreen (standard)
• Press force: 400 t
• Brake length: 3.100 mm
• Distance between columns: 2.500 mm
• Throat depth: 510 mm
• Stroke: 310 mm
• Clear opening: 525 mm
• X-axis travel: 750 mm
• Bending speed / rapid / return: 8 mm/s / 120 mm/s / 130 mm/s
• Main drive motor rating: 37 kW
• Hydraulic tank: 350 l
• Overall dims (L x W x H): 4,3 m x 2,95 m x 3,2 m
• Weight: 20.000 kg
• Tool mount: Promecam (European type)
• Safety: AKAS laser tool safety, rear light curtain, side guards; CE-compliant
