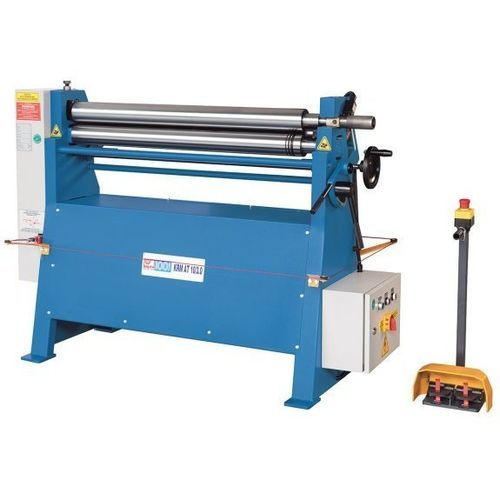

3-roller plate bending machine KRM AT 10/3,0

electricconicalasymmetrical

Overview
3-roll plate roll bender designed for precise bending of sheet and thin plate. Asymmetrical roll geometry ensures optimal traction in stretch-bending phases. Rear roll is manually adjusted; top roll swivels outward for removal of tube-shaped workpieces.

Highlights

• Asymmetrical roll arrangement for improved traction
• Main motor with brake for accurate positioning
• Hardened rollers with wire-insertion grooves (4/6/9 mm)
• Conical bending feature included as standard

Product details

• Type: 3-roller plate roll bender with asymmetrical rollers
• Machine frame: rigid ductile cast-iron construction
• Rolls: hardened, suitable for stainless steel processing
• Top roll: pull-out/swiveling design with eccentric lock for easy workpiece removal
• Rear roll: manual feed (motorized adjustment available as option)
• Control: mobile control panel with foot switch for left/right rotation
• Roller speed: 6 m/min; roll diameter: 90 mm

Standard equipment

• Conical bending function
• Hardened rollers
• Wire insertion grooves (4/6/9 mm)
• Emergency-stop safety rope
• Separate control panel with foot switch
• Side cover (motor protection)
• Operating manual

Optional equipment

• Digital readout for back roll position (precise positioning)
• Motorized back roll adjustment

Technical specifications

• Working length: 1,050 mm
• Plate thickness (max.) – 450 N/mm²: 3 mm
• Plate thickness (max.) – 700 N/mm²: 1.5 mm
• Max. plate thickness for conical bending: 2 mm
• Roll diameter: 90 mm
• Roller speed: 6 m/min
• Wire grooves diameter: 4 / 6 / 9 mm
• Main drive rating: 1.1 kW
• Dimensions (L x W x H): 1.63 m x 0.7 m x 1.2 m
• Weight: 480 kg
