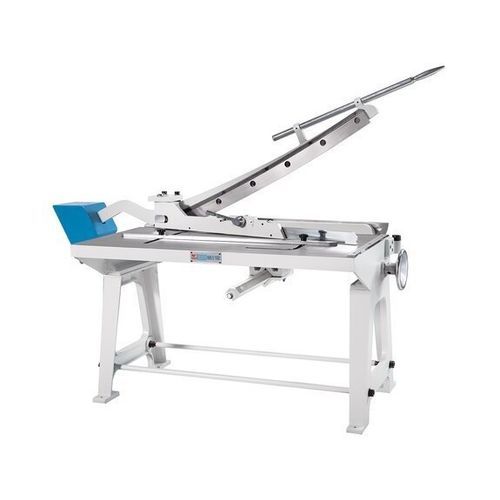

Manual shear KHS E 1000

sheet metalguillotine

Overview
The KHS E 1000 is a classic manual plate shear designed for separating and cutting thin steel plates in workshop and metalworking environments. The cast-iron frame, rigid stop and hardened blade are built for long operational life. A large support table and adjustable rear stop enable handling of wide plates and extended lengths.

Highlights

• Adjustable table stop
• Manually adjustable back-gauge
• Hardened cutters
• Counterweight to improve operator comfort

Product details

• Eccentric-clamp sheet holder for secure retention
• Large steel plates can be passed through for long parts
• Simple, heavy cast-iron construction
• Adjustable cutting stop
• End stops adjustable by handwheel
• Counterweights to assist operator movement

Technical specifications

• Working area
  Working length: 1,040 mm
  Rear stop: 0 mm - 580 mm
  Table dimensions: 605 mm x 1.100 mm
• Cutting capacities
  Plate thickness (max.) - 450 N/mm²: 1.5 mm
• Measures and weights
  Overall dimensions (L x W x H): 2.18 m x 1.41 m x 1.34 m
  Weight: 460 kg
