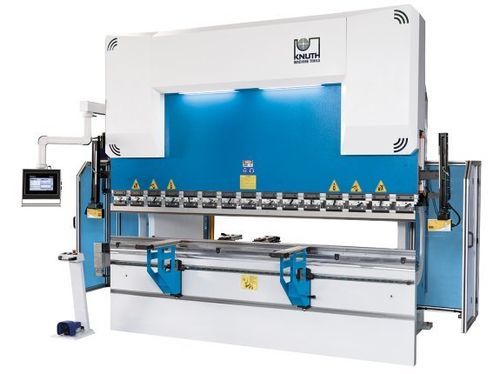

Hydraulic press brake AHK V 30220 CNC

CNCprecision

Product overview The AHK V 30220 CNC press brake is engineered for industrial bending tasks to meet European machine standards. It integrates a DELEM graphical touchscreen for CNC programming and process control and can be configured with multiple back gauge options to suit a range of production requirements.

Highlights

• Precision-machined frame and components
• DELEM graphical touchscreen control (DA-53T)
• Laser optical safety at the tool (AKAS)
• Optional motorized lower crowning for thick-sheet accuracy
• Custom hydraulic cylinders and proven hydraulic components

Machine frame

• Steel frame manufactured from certified material and machined on high-end CNC centers
• Welded, stress-relieved construction with machined mounting surfaces
• Large top beam designed for prestressing to minimize deformation
• Measuring-system holder compensates for deformation under heavy loads
• Guideways, piston bearings and seals sized for optimum vertical load absorption

Work Area

• Large throat depth, long stroke and narrow table provide space for complex bending sequences

Crowning (optional)

• Motorized lower crowning is available to ensure uniform bending results across the full bending length when working with thicker sheets

Hydraulic system

• Machine-specific hydraulic cylinders honed in-house
• Forged-steel pistons hardened, ground and chrome-plated
• Hydraulic blocks and valves from established manufacturers
• Safety valves protect the system in overload conditions

Back Gauge

• Robust, low-maintenance design
• Back gauge fingers adjustable from the machine front using a safety tool for quick setup

Front Support Arms

• Rigid support arms run on linear guides and can be clamped at the required position
• Rack system allows fast vertical positioning
• Industrial brushes facilitate sheet handling and protect surfaces

Bending Tools

• Promecam-style tool carrier compatible with a wide range of tools
• Tools hardened and ground for accurate setup

Safety and Productivity

• AKAS laser safety system monitors the tool area without limiting functionality
• Safety concept conforms to current CE directives
• Rear light curtain and robust side guards secure the work area

Control equipment (DELEM)

• DELEM DA-53T touchscreen: 10.1" TFT, up to 4 axes (Y1/Y2, X, R) standard
• Hotkey navigation, USB backup, tool/material/product databases
• Advanced axis algorithms and programming functions, tandem and offline options available

Technical specifications

• Model: AHK V 30220 CNC
• Press force: 220 t
  Bending length: 3.100 mm
  Distance between columns: 2.600 mm
  Throat depth: 410 mm
  Stroke: 265 mm
  Clear opening: 480 mm
  Table width: 110 mm
  Table height: 900 mm
• Travels: X-axis travel: 750 mm
• Feed: Bending speed: 9 mm/s
  Rapid feed: 150 mm/s
  Return speed: 140 mm/s
  X-axis feed speed: 600 mm/s
• Drive power: Main drive motor: 22 kW
• Measures & weights: Hydraulic tank volume: 350 l
  Overall dimensions (L x W x H): 4.1 m x 2.6 m x 2.85 m
  Weight: 12,000 kg
