Overview

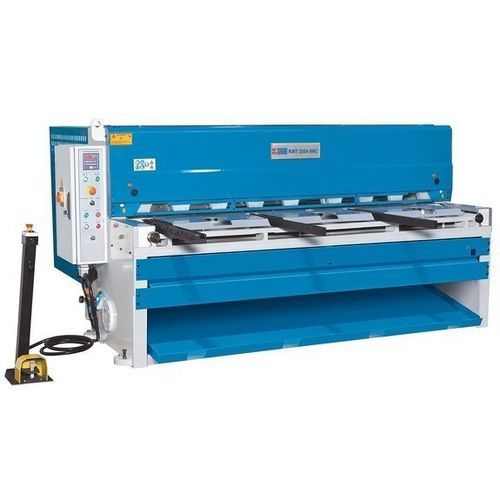

This model of the KMT RNC series is a motorized guillotine shear designed for precision plate cutting in industrial production. It combines a rigid welded steel frame, sliding-block guided cutter bar and a low cutting angle to minimise part distortion. The kerf is manually adjustable and the rear stop is NC-controlled; an integrated Return-to-Operator function improves handling of short offcuts.

Highlights

• Welded steel frame with sliding-block guide for the cutter bar
• NC-controlled rear gauge with easy programming
• Automatic, semi-automatic and manual operating modes
• Standard cutters for stainless steel processing; reversible upper blades and multi-edge lower blades
• Manually adjustable kerf
• Return-to-Operator automatic return function for cut sections

Machine Frame

• Very rigid, fully welded steel construction with precision sliding-block guidance for clean, repeatable cuts
• Special cutters included for stainless steel; upper cutters reversible, lower cutters with four cutting edges
• Continuous rigid hold-down secures the sheet immediately ahead of the cut line
• Manual kerf adjustment to set optimum clearance for different materials

Ergonomic Design

• Automatic return-to-operator function sends short cut pieces back to the operator position to increase throughput and safety
• Rigid side angle stop simplifies perpendicular alignment of plates to the cut line
• Robust support arms secure large plates during cutting
• Material support rollers recessed into the work table to ease handling and reduce scratches
• Mobile foot switch frees both hands for workpiece handling
• Bright LED cut-line illumination creates a visible shadow for accurate marking
• Top-view machine enclosure allows vertical alignment checks
• All lubrication points and adjustment screws are easily accessible for maintenance

Rear stop / Back Gauge

• Robust rear stop with ball screw and linear guides for high positioning accuracy
• Motorized back gauge provides precise positioning in automatic, semi-automatic and manual modes
• NC control allows quick and simple programming of back gauge positions
• Work area at the back gauge secured by a light curtain for operator protection
• Optional sheet-hold device available to support the return-to-operator function

Equipment

• High-quality electrical components for reliable operation and high machine availability
• Full machine enclosure designed for practical use and maximum safety

Technical specifications

• Working length: 3.060 mm
• Cutting angle: 1.3°
• Work table height: 880 mm
• Work table depth: 455 mm
• Number of support arms: 3 positions
• Support arms travel/length: 1.000 mm
• Strokes per minute: 31 H/min
• Back gauge (motorized): 750 mm
• Cutting capacity (450 N/mm²): 0.2 mm (min) – 4 mm (max)
• Cutting capacity (700 N/mm²): 2 mm (max)
• Main drive motor rating: 11 kW
• Overall dimensions (L x W x H): 3.7 m x 2.35 m x 1.4 m
• Weight: 4,100 kg
