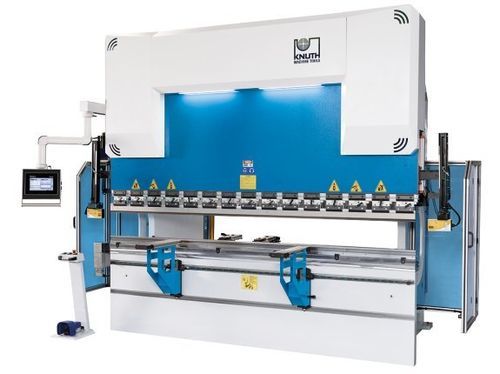

Hydraulic press brake AHK V 26100 CNC

CNCprecision

Product overview
The AHK V CNC series press brakes meet demanding European standards for modern bending equipment. Designed with advanced engineering and produced on modern lines, these machines deliver precision, reliability and adaptable configuration. All AHK V CNC models include a DELEM graphical touchscreen for efficient CNC programming and process control. Multiple back-gauge options allow adaptation to diverse production requirements.

Highlights

• High-precision machining and assembly
• Premium hydraulic and electronic components
• DELEM graphical touchscreen CNC control
• AKAS laser-optical safety at the tool area
• Time-saving setup and handling solutions

Machine frame

• Welded steel frame from certified material, stress-relieved and machined on high-end CNC centres for above-average rigidity and accuracy
• Load-bearing parts designed with large radii to avoid weld cracking
• Large, prestressable top beam optimised to minimise deformation
• Measuring-system holder compensates deformations under maximal loads to maintain precision
• Guideways, piston bearings and seals designed for optimal vertical load absorption and long service life

Work Area

• Large throat depth, long stroke and narrow table provide ample free space for complex bending sequences

Crowning (optional for some models)

• Motorised lower crowning ensures uniform bending results across the full bending length when processing thicker sheets

Hydraulic system

• Custom-designed hydraulic cylinders manufactured and honed in-house
• Forged steel hydraulic pistons hardened, ground and chrome-plated for durability
• Hydraulic blocks and valves from reputable manufacturers for lasting reliability
• Safety valves protect the system against overload conditions

Back Gauge

• Robust, low-maintenance design
• Back-gauge fingers adjustable quickly via safety tool with direct access from the machine front

Front Support Arms

• Rigid support arms run on linear guides and can be clamped in position
• Rack-and-pinion mechanism allows rapid vertical positioning
• Industrial brushes ease sheet handling and protect surfaces

Bending Tools

• Promecam (European) tool holders accommodate a wide selection of tooling
• Hardened and ground tools permit precise set-up

Safety and Productivity

• AKAS laser safety system monitors the tool area without limiting functionality
• Safety concept based on latest CE standards
• Rear light curtain and robust side guards secure the working area

Technical specifications

• Pressure force: 100 t
• Bending length: 2,600 mm
• Distance between columns: 2,200 mm
• Throat depth: 410 mm
• Stroke: 265 mm
• Clear opening: 480 mm
• Table width: 110 mm
• Table height: 900 mm
• Travel in X-axis: 750 mm
• Bending speed: 10 mm/s
• Rapid feed: 180 mm/s
• Return speed: 130 mm/s
• Feed speed X-axis: 600 mm/s
• Motor rating main drive: 11 kW
• Hydraulic tank volume: 230 l
• Overall dimensions (L x W x H): 3.55 m x 2.5 m x 2.68 m
• Weight: 7,200 kg
