Electric shear KMT M 1503

sheet metalguillotinemotorized

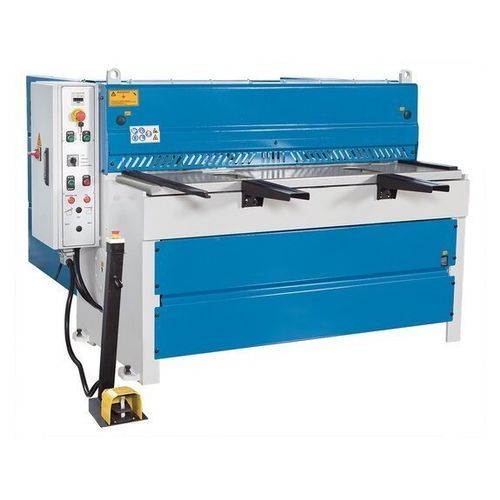

Product overview The KMT M 1503 is a motorized plate shear designed for precision sheet cutting in industrial production. The machine features a sliding-block guided cutter beam and a manually positioned high-precision back gauge. Drive power and a low cutter angle limit workpiece torsion for clean cuts.

Highlights

• Solid welded steel frame with sliding-block guidance
• Special cutters for stainless steel supplied as standard
• Reversible upper blades and multi-edge lower blades
• Manual back gauge with travel display (750 mm)
• Work area protected by light curtain and finger guards

Technical specifications (summary)

• Working length: 1,560 mm
• Cutting angle: 2°
• Work table height: 810 mm
• Work table depth: 390 mm
• Support arms: 2 positions, 450 mm
• Strokes per minute: 35 H/min
• Back gauge travel (manual): 750 mm
• Cutting capacity (450 N/mm²): 0.25 mm – 3 mm
• Cutting capacity (700 N/mm²): 1.5 mm (max)
• Main drive rating: 3 kW
• Dimensions (L x W x H): 2.1 m x 2.1 m x 1.26 m
• Weight: 1,500 kg

Machine body and drive system

• Fully welded, rigid steel frame ensures stable guidance of the cutter beam
• Sliding-block guidance delivers precise, repeatable cuts
• Upper cutters reversible; lower cutters provide multiple cutting edges for long service life
• Continuous rigid hold-down secures the sheet directly in front of the cut line

Material support

• Lateral squaring stop simplifies perpendicular alignment to the cut line
• Robust support arms and wide support table facilitate handling of large plates
• Support arms available in two positions to suit different workflows

Ergonomic design

• Bright LED cut-line illumination creates a visible shadow on the marked line for accurate alignment
• Machine enclosure allows vertical top view for precise positioning
• Integrated cut counter and easily accessible lubrication and adjustment points simplify operation and maintenance

Rear stop

• Manual positioning via hand wheel with analog travel scale for exact placement
• Back gauge area secured by light curtain for operator safety

Equipment (standard)

• 750 mm manual back gauge
• Cutting unit counter
• Cut-line lighting with shadow illumination
• Finger protection cages and rear safety covers with photocell
• Upper blade (2 edges) and lower blade (4 edges)
• Foot switch with emergency stop
• Squaring arm with T-slot, stopper and ruler
• Front sheet holding arms (solid rectangular type)
• Operating manual

Technical details / specifications

• Model: KMT M 1503
• Working length: 1,560 mm
• Cutting angle: 2°
• Work table height: 810 mm
• Work table depth: 390 mm
• Support arms: 2 positions, 450 mm
• Strokes per minute: 35 H/min
• Rear stop: 750 mm (manual)
• Cutting capacity (450 N/mm²): 0.25 mm – 3 mm
• Cutting capacity (700 N/mm²): 1.5 mm
• Main drive motor: 3 kW
• Dimensions: 2.1 m x 2.1 m x 1.26 m
• Weight: 1,500 kg
