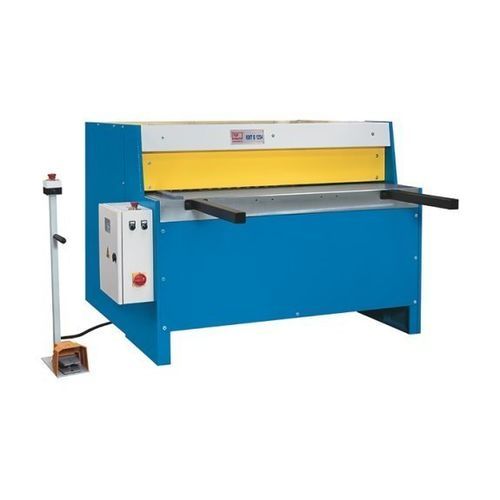

Electric shear KMT B 1254

sheet metalguillotinemotorized

Overview
The KMT B 1254 motorized guillotine shear is designed for processing long or thick sheet metal in metalworking shops, repair workshops and single-piece production. The machine features a stable, fully welded steel frame and guided cutter beams to reduce twist and ensure accurate cuts. Cutting length is positioned manually on the back gauge for precise repeatability.

Highlights

• Fully welded steel construction
• Long, rugged support arms for large plates
• Mobile control unit with foot switch and emergency stop
• Manual back gauge with counter (rear-of-machine operation)
• Swivel-mounted workspace enclosure for operator safety

Machine frame and drive system

• Rigid steel weldment chassis for high stability
• Rubber-coated hold-down automatically secures the plate
• Small knife angle minimises workpiece twist and improves cut accuracy

Material support

• Rigid lateral angle stop simplifies plate alignment to the cut line
• Robust support arms provide steady support for large plates on the work table

Operation and ergonomics

• Illuminated cut-line for clear marking visibility
• Mobile control unit with foot switch frees both hands of the operator

Back gauge

• Manual back gauge with counter for precise positioning
• Robust, rigid construction suitable for daily shop use
• Work area at the back gauge covered with safety panels

Technical specifications (table)
Working area:
Working length: 1.250 mm
Cutting angle: 2.4°
Strokes per minute (automatic mode): 27 H/min
Knife length: 1.350 mm
Work table height: 830 mm
Support arms: 600 mm
Number of support arms: 2 positions

Back gauge:
Rear stop: 630 mm

Cutting capacities:
Plate thickness (max.) - 450 N/mm²: 0.8 mm - 4 mm

Drive capacity:
Motor rating main drive: 4 kW

Measures and weights:
Overall dimensions (length x width x height): 1.72 m x 1.6 m x 1.19 m
Weight: 1,185 kg

Included / Standard items (selection)

• Foot pedal with emergency stop switch
• Side angle stop
• Support arms
• Automatic hold-down device
• Cut-line lighting
• Manual rear stop
• Operating manual
