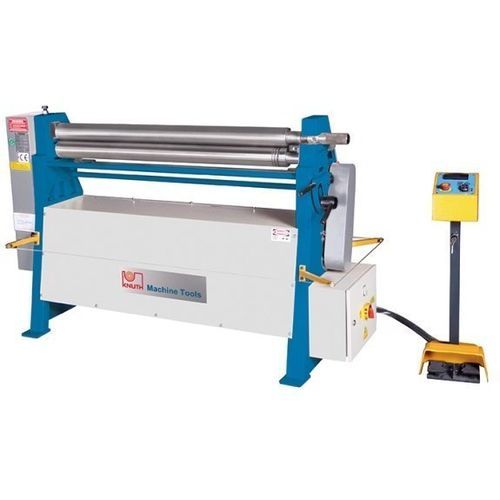

3-roller plate bending machine KRM AT 12/2,5

electricconicalasymmetrical

Overview
The KRM AT 12/2,5 is a motorized 3-roll plate roller designed for precision forming of steel and stainless steel sheets. Asymmetrical roll geometry provides optimal traction for stretch-bending thin plates. The rear roll is manually fed and the top roll swivels outward for easy removal of tube-shaped parts.

Highlights

• Asymmetrical roll arrangement for improved traction on thin plates
• Main motor with brake for exact bending operations
• Hardened rollers with wire-insertion grooves (4 / 6 / 9 mm)
• Conical bending capability included as standard

Product details

• Model: KRM AT 12/2,5
• 3-roller roll bender with asymmetrically positioned rollers
• Rigid machine frame made of ductile cast iron
• Hardened rollers suitable for stainless steel
• Pull-out top roller with eccentric lock for simple workpiece removal
• Bottom and rear rollers with wire insertion grooves (standard)
• Manual rear roll feed (motorized option available)
• Mobile control panel with foot switch for left/right rotation

Technical specification table
Working length | 1.270 mm
Plate thickness (max.) - 450 N/mm² | 2,5 mm
Plate thickness (max.) - 700 N/mm² | 1,5 mm
Max. plate thickness for conical bending | 2 mm
Roll diameter | 90 mm
Roller speed | 6 m/min
Wire groove diameters | 4 / 6 / 9 mm

Drive capacity
Main drive motor rating | 1,1 kW

Dimensions and weight
Overall dimensions (L x W x H) | 1,85 m x 0,7 m x 1,2 m
Weight | 520 kg

Technical characteristics

• Type: motorized 3-roll plate roller
• Ideal for precision stretch-bending and conical bending
• Standard conical bending feature
• Optional: digital readout or motorized rear roll adjustment
